HXY MOSFETDatasheet (PDF)

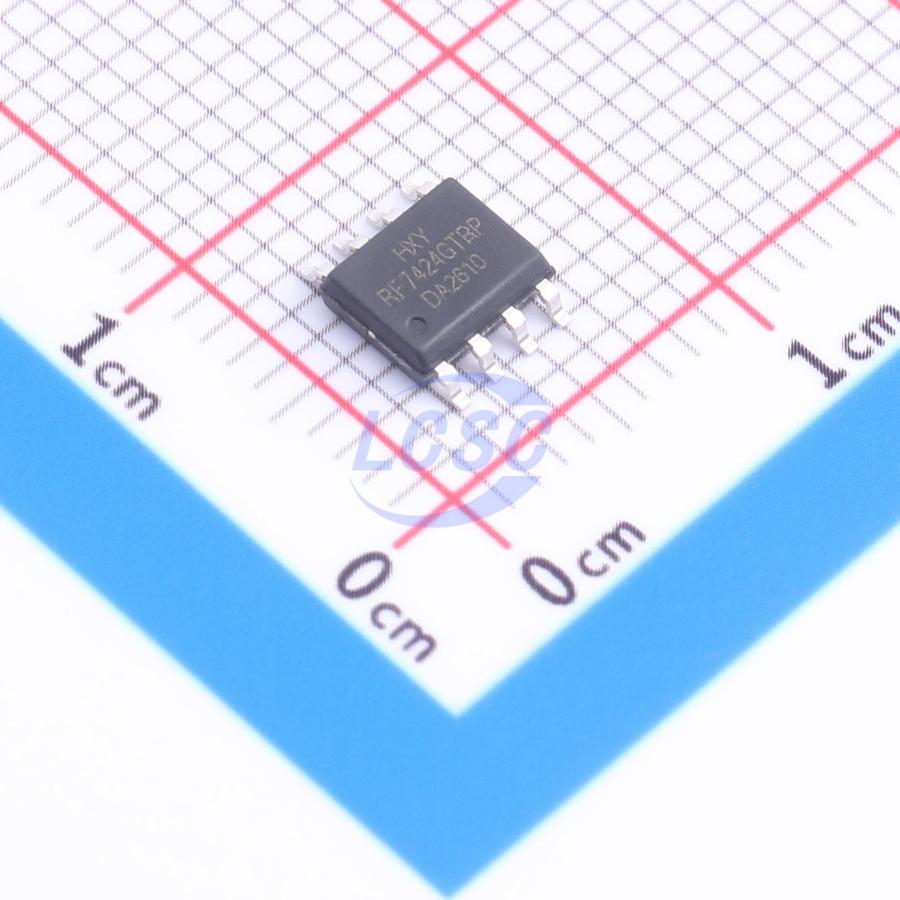

IRF7424GTRPBF-HXY
30V 12A 2.5W 10mΩ@10V 1 P-Channel P-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRF7424GTRPBF-HXY
- Store part #
- C54582677
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C54582677
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.97 | ₹94.85 |
| 50+ | ₹15.11 | ₹755.50 |
| 150+ | ₹13.18 | ₹1,977.00 |
| 500+ | ₹11.74 | ₹5,870.00 |
| 3,000+ | ₹10.58 | ₹31,740.00 |
| 6,000+ | ₹10.00 | ₹60,000.00 |
5 × ₹18.97
₹94.85
excl. GST
₹111.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF7424GTRPBF-HXY
₹94.85 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 233pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.77nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 206pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
IRF7424GTRPBF utilizes advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. The device is suitable for battery protection or other switching applications. Available in SOP-8 package.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = -30V, ID = -12A
- RDS(ON) < 15mΩ (@VGS = 10V)
- P-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF9328PBF-HXY#C22366553HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 15 | ₹26.01 · 15 in stock | View |
 | FDS6675-HXY#C22366555HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 45 | ₹32.61 · 45 in stock | View |
| FDS6675BZ-HXY#C22366556HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 25 | ₹31.82 · 25 in stock | View | |
 | HXY4407S#C3033408HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 210 | ₹18.95 · 210 in stock | View |
 | AO4407-HXY#C4748733HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 2,790 | ₹16.01 · 2,790 in stock | View |
