InfineonDatasheet (PDF)

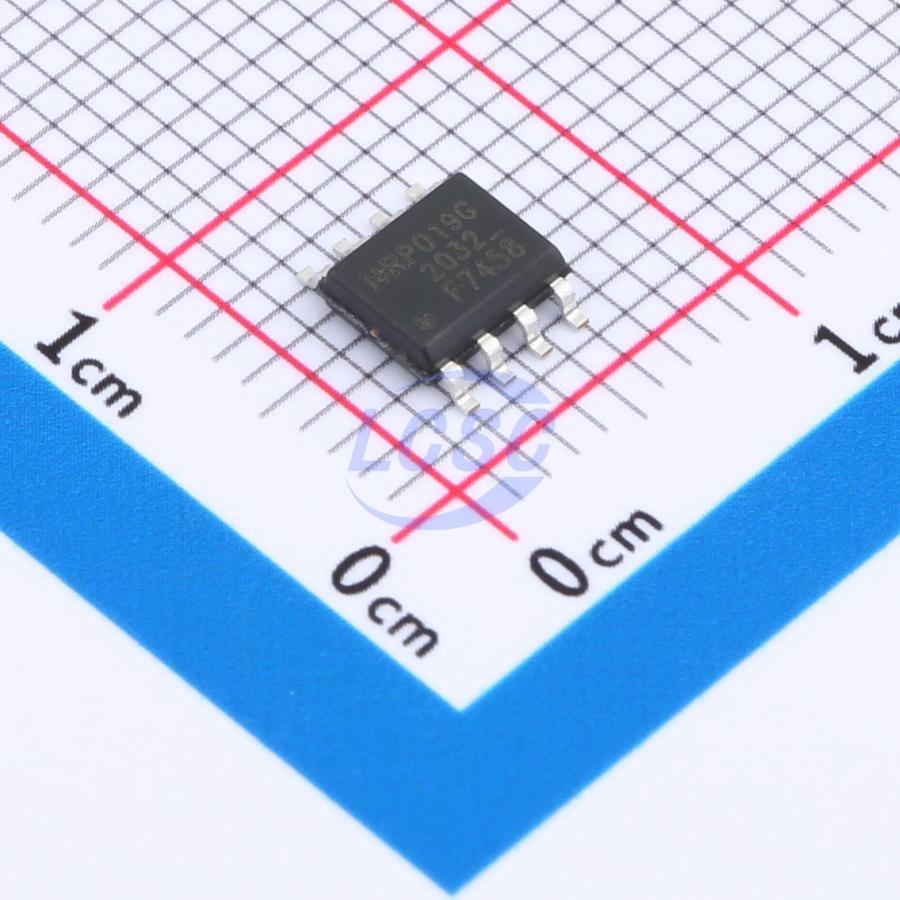

IRF7458TRPBF
N-Channel 30V 14A 2.5W Surface Mount SO-8
SO-8ROHS3 CompliantDiscontinued
MOSFET N-CH 30V 14A SO-8
- Manufacturer
- Infineon
- Manufacturer part #
- IRF7458TRPBF
- Store part #
- C10879
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C10879
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹396.99 | ₹396.99 |
| 10+ | ₹336.07 | ₹3,360.70 |
| 30+ | ₹297.69 | ₹8,930.70 |
| 100+ | ₹258.66 | ₹25,866.00 |
| 500+ | ₹240.89 | ₹1,20,445.00 |
| 1,000+ | ₹233.30 | ₹2,33,300.00 |
1 × ₹396.99
₹396.99
excl. GST
₹468.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF7458TRPBF
₹396.99 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.1nF
- Ciss-Input Capacitance
- 2.41nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 14A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 59nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.286 g
Overview
Applications
- High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use
- High Frequency Buck Converters for Computer Processor Power
Key features
- Ultra-Low Gate Impedance
- Very Low RDS(on)
- Fully Characterized Avalanche Voltage and Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS6680A#C5350864TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 6,805 | ₹37.39 · 6,805 in stock | View |
 | IRF7854TRPBF-TP#C53100642TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,926 | ₹104.21 · 2,926 in stock | View |
 | FDS86140-TP#C53100650TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,990 | ₹130.14 · 3,990 in stock | View |
 | TPSI4090DY-T1-GE3#C53100651TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 6,173 | ₹129.30 · 6,173 in stock | View |
 | PJS15G10C#C55114305TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 200 | ₹78.04 · 200 in stock | View |
