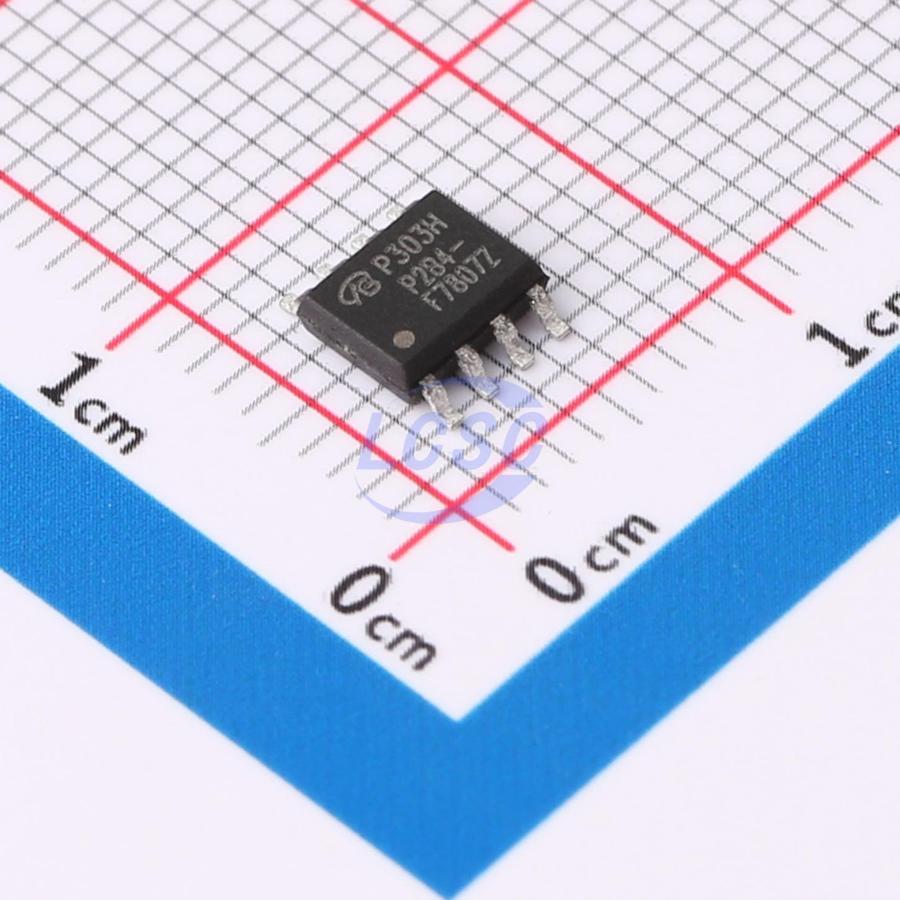

IRF7807ZTRPBF-VB
N-Channel 30V 13A 2.2W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 13A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF7807ZTRPBF-VB
- Store part #
- C7429019
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7429019
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.12 | ₹265.60 |
| 50+ | ₹43.38 | ₹2,169.00 |
| 150+ | ₹39.20 | ₹5,880.00 |
| 500+ | ₹33.99 | ₹16,995.00 |
| 2,500+ | ₹23.93 | ₹59,825.00 |
| 4,000+ | ₹22.54 | ₹90,160.00 |
5 × ₹53.12
₹265.60
excl. GST
₹313.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF7807ZTRPBF-VB
₹265.60 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 165pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 2.2W
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 8mΩ@10V;11mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.8nC@5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.135 g
Overview
Applications
- Laptop CPU core
- High-end switch
Key features
- Halogen-free
- Trench power MOSFET
- Optimized for high-side synchronous rectifier operation
- 100% Rq tested
- 100% UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS6670AS-NL-VB#C5456498VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹44.98 · 45 in stock | View |
 | NDS9410A-NL-VB#C5878830VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹47.24 · 20 in stock | View |
 | BSO072N03S-VB#C693191VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 85 | ₹44.78 · 85 in stock | View |
 | AO4408-VB#C709888VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹55.41 · 50 in stock | View |
 | ME4410AD-VB#C710014VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 5 | ₹46.98 · 5 in stock | View |
