HXY MOSFETDatasheet (PDF)

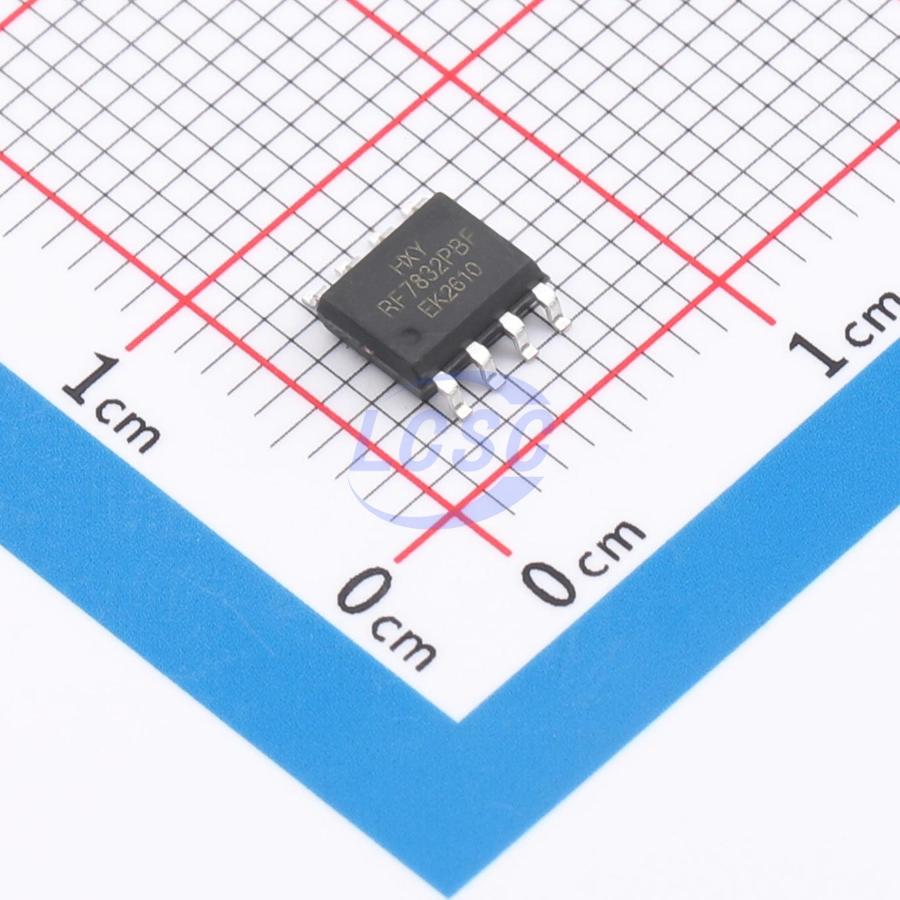

IRF7832PBF-HXY
30V 30A 1.4W 3.3mΩ@10V 1 N-channel N-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRF7832PBF-HXY
- Store part #
- C54582824
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582824
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.44 | ₹64.44 |
| 10+ | ₹51.73 | ₹517.30 |
| 30+ | ₹46.12 | ₹1,383.60 |
| 100+ | ₹39.23 | ₹3,923.00 |
| 500+ | ₹32.55 | ₹16,275.00 |
| 1,000+ | ₹30.61 | ₹30,610.00 |
1 × ₹64.44
₹64.44
excl. GST
₹76.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF7832PBF-HXY
₹64.44 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 370pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 3.1nF
- Pd - Power Dissipation
- 1.4W
- Reverse Transfer Capacitance (Crss)
- 286pF
- RDS(on)
- 3.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.154 g
Overview
The IRF7832PBF utilizes advanced trench technology to deliver excellent on-state resistance (RDS(ON)), low gate charge, and operation down to 4.5V gate voltage. The device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-to-source voltage (VDS) of 30V, drain current (ID) of 30A
- On-resistance (RDS(ON)) less than 4.5mΩ at gate-to-source voltage (VGS) of 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO4354#C54582796HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 40 | ₹36.53 · 40 in stock | View |
 | IRF7832TRPBF-HXY#C54582797HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 2,729 | ₹58.33 · 2,729 in stock | View |
 | IRF7862TRPBF-HXY#C54582798HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 40 | ₹54.71 · 40 in stock | View |
 | SI4166DY-T1-GE3-HXY#C54582803HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 48 | ₹86.14 · 48 in stock | View |
 | SQ4182EY-T1_GE3-HXY#C54582804HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 48 | ₹158.27 · 48 in stock | View |
