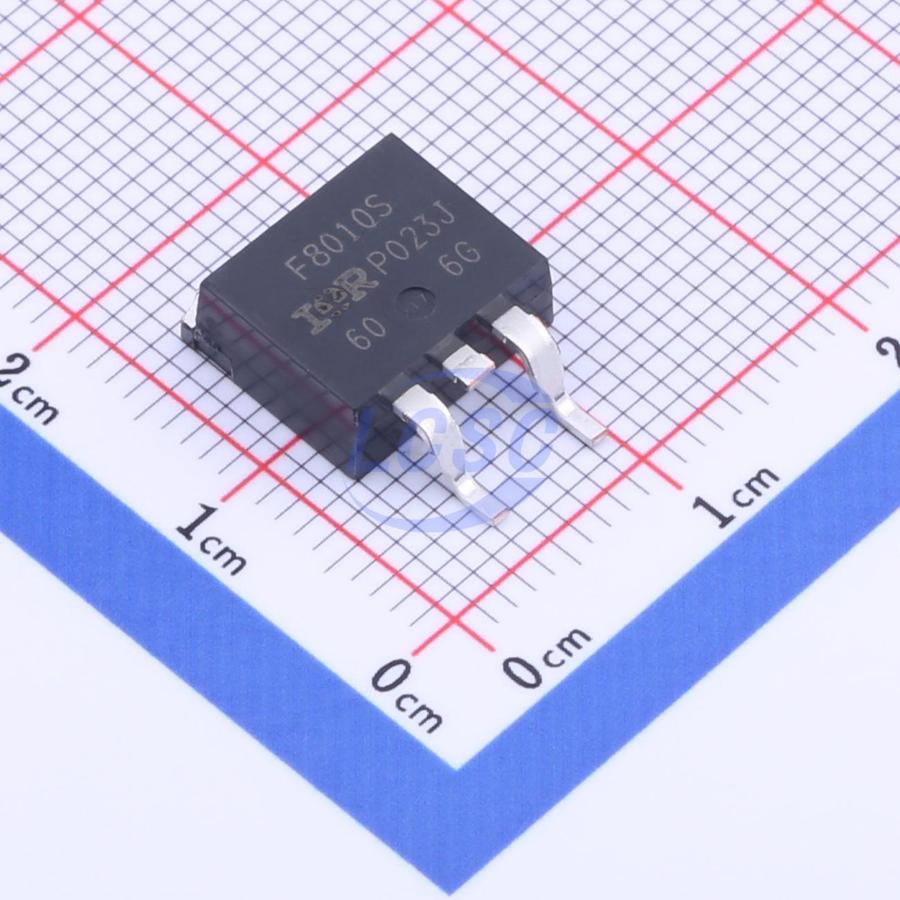

IRF8010STRLPBF
N-Channel 100V 80A 260W Surface Mount D2PAK
D2PAKROHS3 CompliantActive
MOSFET N-CH 100V 80A D2PAK
- Manufacturer
- Infineon
- Manufacturer part #
- IRF8010STRLPBF
- Store part #
- C537835
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52 in stock
#C537835
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.13 | ₹220.13 |
| 10+ | ₹184.49 | ₹1,844.90 |
| 30+ | ₹162.11 | ₹4,863.30 |
| 100+ | ₹139.30 | ₹13,930.00 |
| 500+ | ₹128.86 | ₹64,430.00 |
| 800+ | ₹124.52 | ₹99,616.00 |
1 × ₹220.13
₹220.13
excl. GST
₹259.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRF8010STRLPBF
₹220.13 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 480pF
- Current - Continuous Drain(Id)
- 80A
- Pd - Power Dissipation
- 260W
- RDS(on)
- 15mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC@10V
- Vgs
- ±20V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.695 g
Overview
Applications
- High frequency DC-DC converters
- UPS and Motor Control
Key features
- Low Gate-to-Drain Charge to Reduce Switching Losses
- Fully Characterized Capacitance Including Effective COSS to Simplify Design
- Fully Characterized Avalanche Voltage and Current
- Typical RDS(on)=12mΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PSMN7R0-100BS,118#C553328Nexperia · D2PAK | Nexperia | D2PAK | 9 | ₹577.50 · 9 in stock | View |
 | STB80NF10T4-JSM#C18192987JSMSEMI · TO-263 | JSMSEMI | TO-263 | 200 | ₹103.86 · 200 in stock | View |
 | IRF8010STRLPBF-JSM#C55112066JSMSEMI · TO-263 | JSMSEMI | TO-263 | 79 | ₹132.14 · 79 in stock | View |
 | NP82N10PUF-JSM#C55112107JSMSEMI · TO-263 | JSMSEMI | TO-263 | 100 | ₹127.92 · 100 in stock | View |
 | STB15810#C620154ST · D2PAK | ST | D2PAK | 818 | ₹171.42 · 818 in stock | View |
