VISHAYDatasheet (PDF)

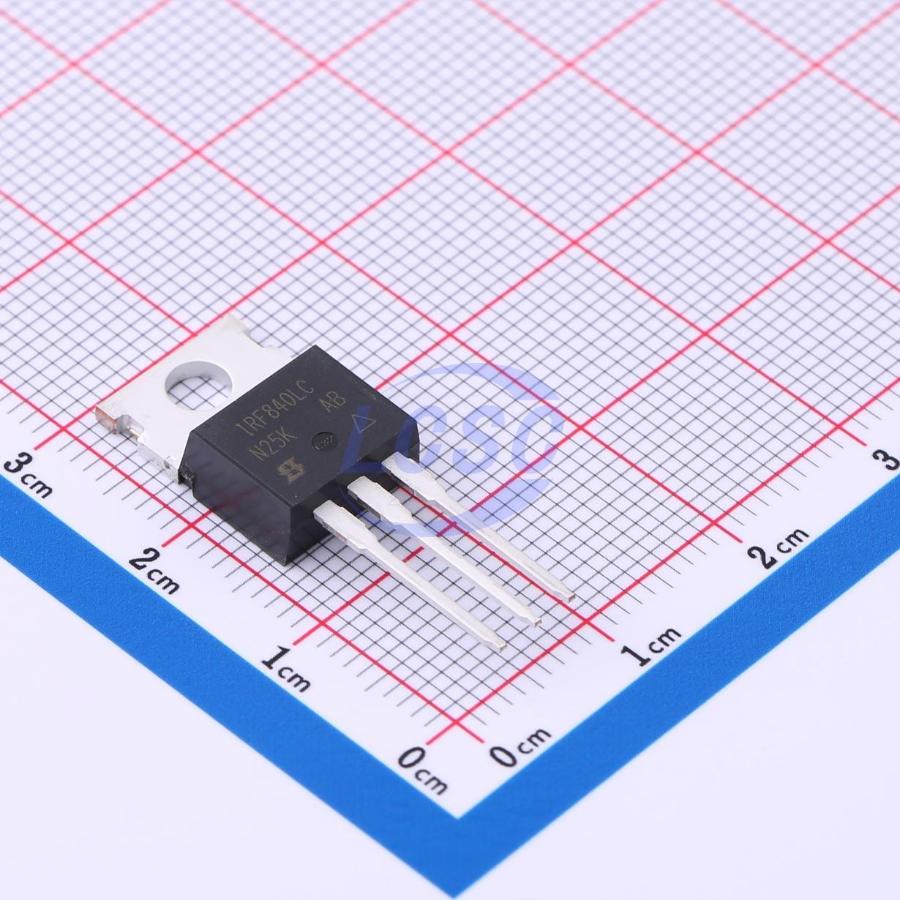

IRF840LCPBF
125W 500V 8A 850mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs RoHS
TO-220ABROHS3 CompliantActive
MOSFET N-CH 500V 8A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF840LCPBF
- Store part #
- C3290428
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C3290428
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.84 | ₹173.84 |
| 10+ | ₹170.15 | ₹1,701.50 |
| 30+ | ₹167.76 | ₹5,032.80 |
| 100+ | ₹145.81 | ₹14,581.00 |
1 × ₹173.84
₹173.84
excl. GST
₹205.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF840LCPBF
₹173.84 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 170pF
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 8A
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 850mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.9 g
Overview
This new low-charge power MOSFET significantly reduces gate charge compared to conventional MOSFETs. Utilizing a new LCDMOS technology, it achieves improved device performance without increasing product cost, lowers gate drive requirements, and reduces overall system cost. In addition, the device reduces switching losses and improves efficiency across various high-frequency applications. With this new low-charge MOSFET, frequencies of several MHz can be achieved under high-current conditions. These device improvements, combined with the inherent ruggedness and reliability of power MOSFETs, provide designers with a new standard power transistor for switching applications.
Applications
- Server and telecom power supplies - Switch Mode Power Supplies (SMPS) - Power Factor Correction (PFC) - Lighting - High Intensity Discharge (HID) lamps - Fluorescent lamp ballast lighting - Industrial applications - Welding - Motor drives - Battery chargers - Solar (photovoltaic inverters)
Key features
- Ultra-low gate charge
- Reduced gate drive requirements
- Enhanced 30 V VGS rating
- Low Ciss, Coss, Crss
- Extremely high frequency operation
- Repetitive avalanche rated
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF840APBF#C2605VISHAY · TO-220AB | VISHAY | TO-220AB | 4,000 | ₹135.66 · 4,000 in stock | View |
 | IRF840#C358409BLUE ROCKET · TO-220 | BLUE ROCKET | TO-220 | 351 | ₹75.83 · 351 in stock | View |
 | WGP10N60S#C17702300Wild Goose · TO-220 | Wild Goose | TO-220 | 205 | ₹46.73 · 205 in stock | View |
| IRF840PBF-BE3#C3280705VISHAY · TO-220AB | VISHAY | TO-220AB | 10 | ₹425.79 · 10 in stock | View | |
 | IRF840PBF#C537842VISHAY · TO-220AB | VISHAY | TO-220AB | 55,664 | ₹93.60 · 55,664 in stock | View |
