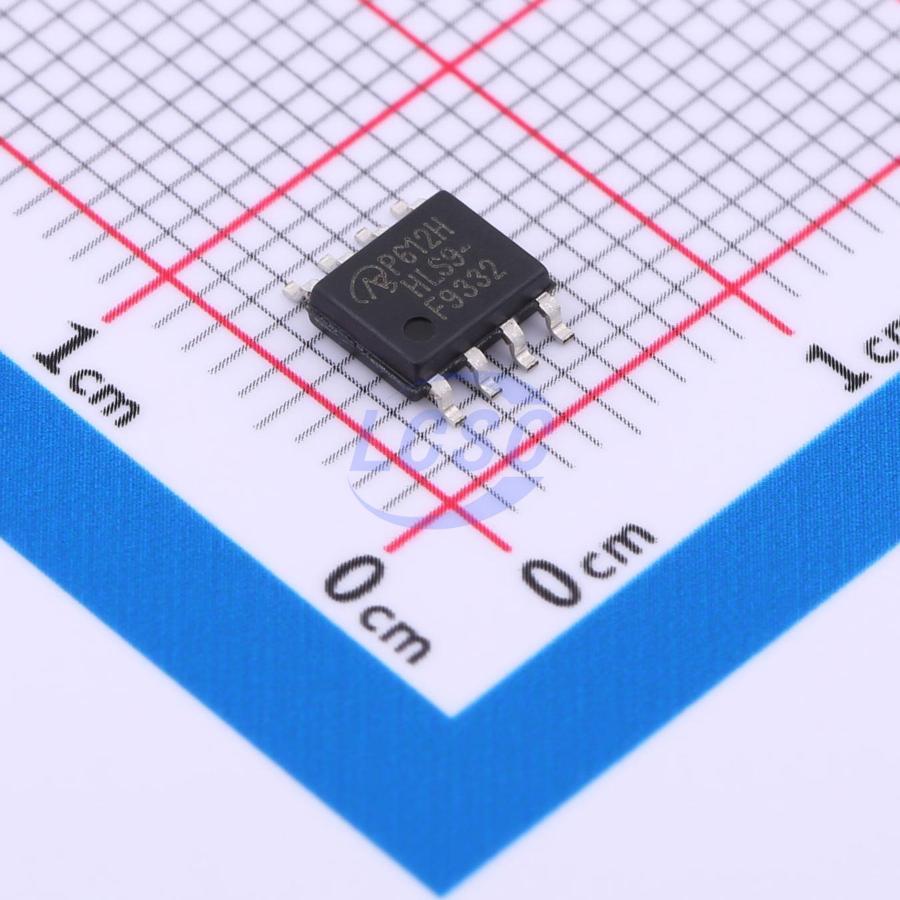

IRF9332TRPBF-VB
P-Channel 30V 11.6A 5.6W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 11.6A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF9332TRPBF-VB
- Store part #
- C5441228
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C5441228
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.81 | ₹73.81 |
| 10+ | ₹60.74 | ₹607.40 |
| 30+ | ₹55.30 | ₹1,659.00 |
| 100+ | ₹48.33 | ₹4,833.00 |
| 500+ | ₹33.96 | ₹16,980.00 |
| 1,000+ | ₹32.23 | ₹32,230.00 |
1 × ₹73.81
₹73.81
excl. GST
₹87.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF9332TRPBF-VB
₹73.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 380pF
- Current - Continuous Drain(Id)
- 11.6A
- Ciss-Input Capacitance
- 1.96nF
- Pd - Power Dissipation
- 5.6W
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 43nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.211 g
Overview
Applications
- Load Switch - Laptop - Desktop Computer
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
- Halogen-free available
