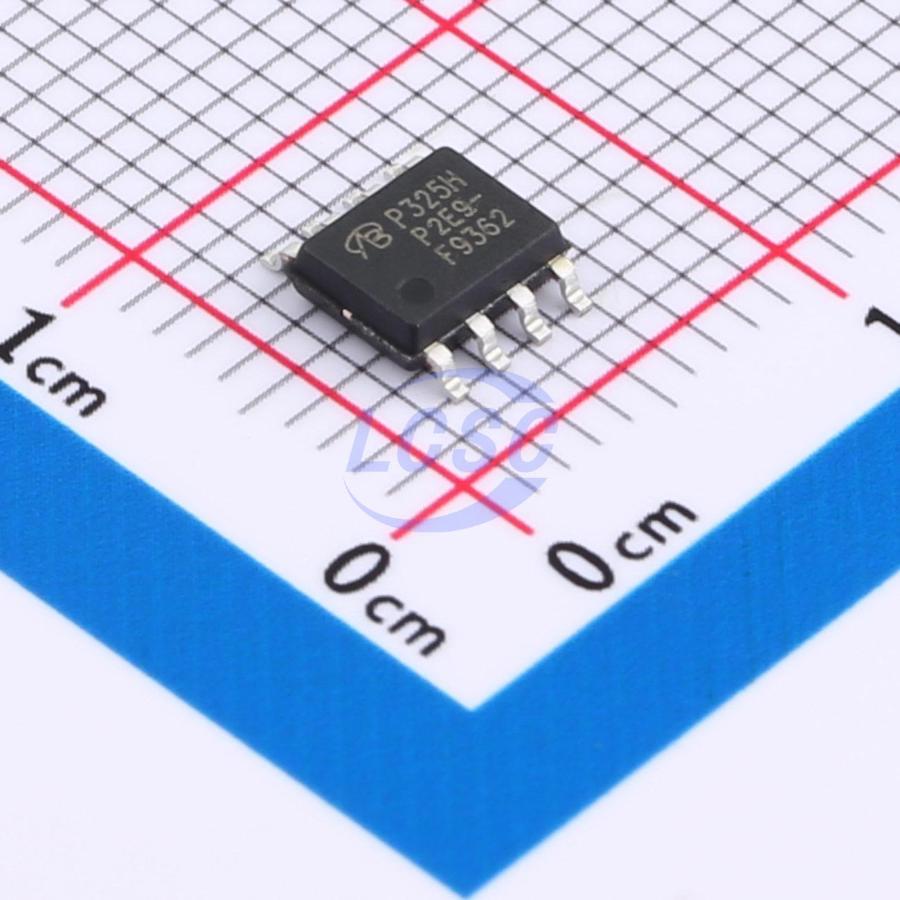

IRF9362TRPBF-VB
P-Channel 30V 8A 2.5W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF9362TRPBF-VB
- Store part #
- C7429027
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7429027
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.37 | ₹74.37 |
| 10+ | ₹58.82 | ₹588.20 |
| 30+ | ₹52.10 | ₹1,563.00 |
| 100+ | ₹43.91 | ₹4,391.00 |
| 500+ | ₹40.13 | ₹20,065.00 |
| 1,000+ | ₹37.81 | ₹37,810.00 |
1 × ₹74.37
₹74.37
excl. GST
₹87.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF9362TRPBF-VB
₹74.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 215pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 1.35nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 135pF
- RDS(on)
- 21mΩ@10V;28mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 32nC@10V;15nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.135 g
Overview
Applications
- Load Switch
- Laptop
- Desktop PC
- Gaming Console
Key features
- Halogen-free
- Trench power MOSFET
- 100% tested for unclamped inductive switching (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO4433-VB#C5137409VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 55 | ₹61.02 · 55 in stock | View |
 | APM4435KC-TRL-VB#C558094VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹55.21 · 10 in stock | View |
 | CHMP830JGP-A-VB#C5456489VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹49.27 · 15 in stock | View |
 | NDS8435A-NL-VB#C7442627VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 65 | ₹48.51 · 65 in stock | View |
 | SI4435DDY-T1-E3-VB#C7494599VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹49.27 · 50 in stock | View |
