HXY MOSFETDatasheet (PDF)

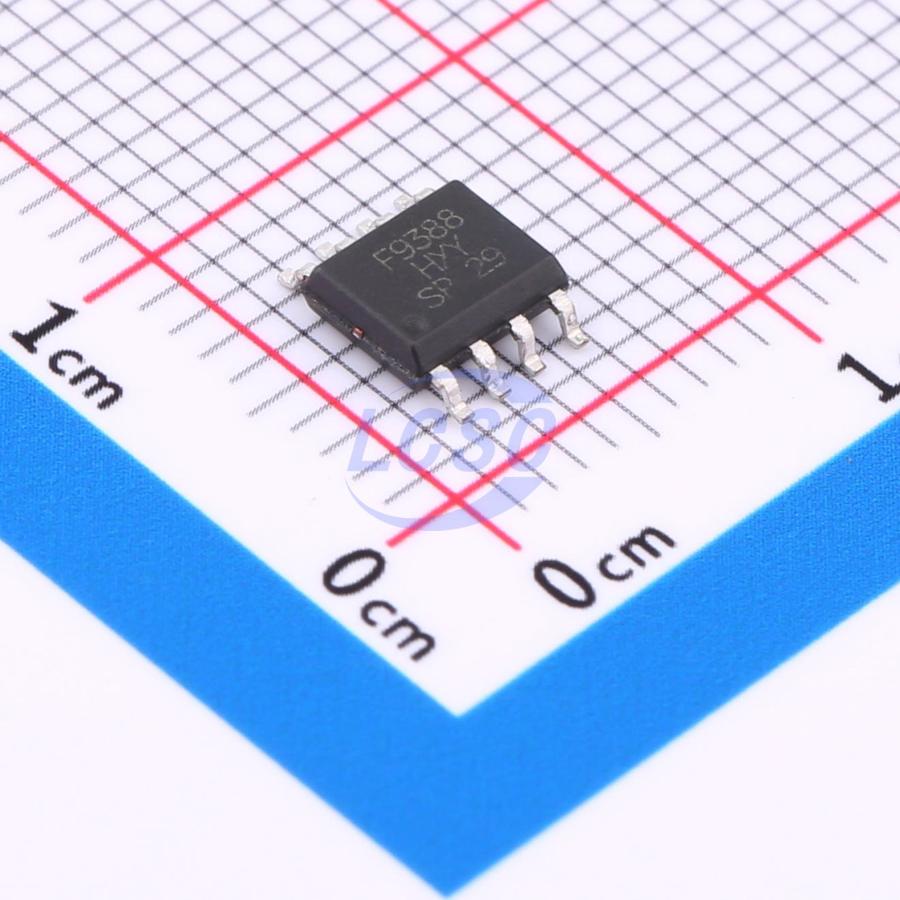

IRF9388TRPBF-HXY
P-Channel 30V 12A 2.5W Surface Mount SOP-8
SOP-8ROHS CompliantActive
MOSFET P-CH 30V 12A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRF9388TRPBF-HXY
- Store part #
- C7543023
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C7543023
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.28 | ₹136.40 |
| 50+ | ₹21.80 | ₹1,090.00 |
| 150+ | ₹19.45 | ₹2,917.50 |
| 500+ | ₹14.75 | ₹7,375.00 |
| 3,000+ | ₹13.45 | ₹40,350.00 |
| 6,000+ | ₹12.66 | ₹75,960.00 |
5 × ₹27.28
₹136.40
excl. GST
₹160.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF9388TRPBF-HXY
₹136.40 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 233pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.77nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 206pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.125 g
Overview
IRF9388TRPBF utilizes advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. The device is suitable for battery protection or other switching applications. Available in SOP-8 package.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage VDS = -30V, drain current ID = -12A
- On-resistance RDS(ON) < 15mΩ at gate-source voltage VGS = 10V
- P-channel MOSFET
