VISHAYDatasheet (PDF)

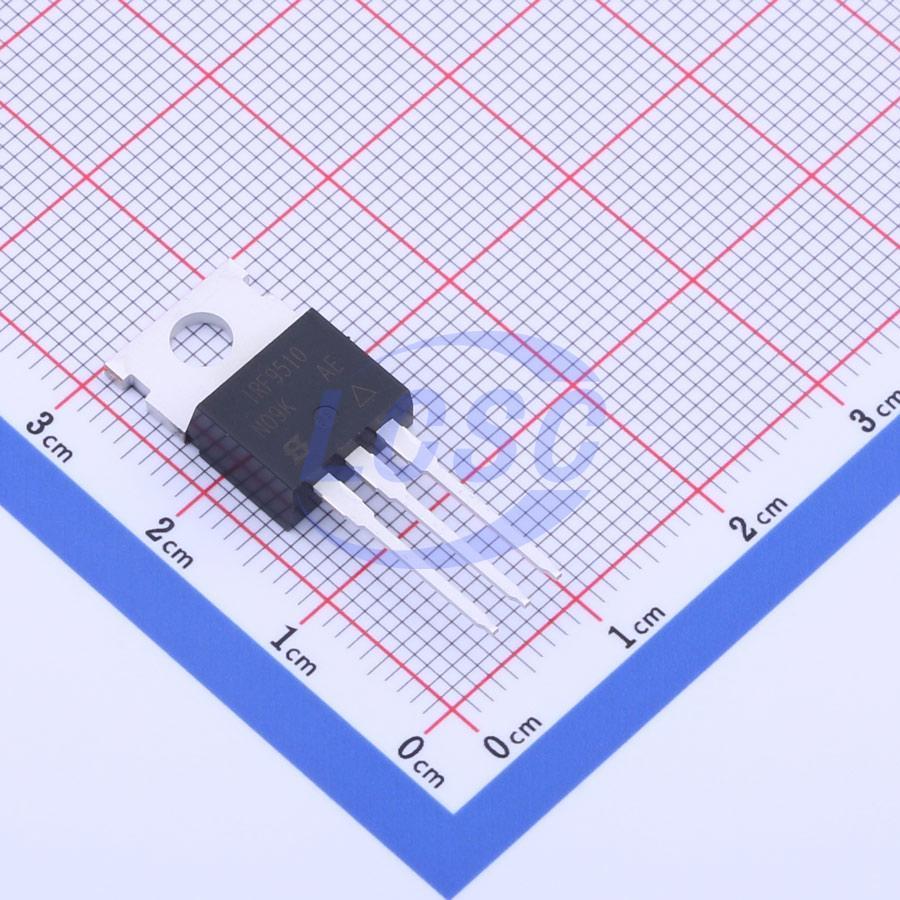

IRF9510PBF
P-Channel 100V 2.8A 43W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET P-CH 100V 2.8A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF9510PBF
- Store part #
- C727836
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,999 in stock
#C727836
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.62 | ₹91.62 |
| 10+ | ₹73.55 | ₹735.50 |
| 50+ | ₹57.67 | ₹2,883.50 |
| 100+ | ₹48.75 | ₹4,875.00 |
| 500+ | ₹43.53 | ₹21,765.00 |
| 1,000+ | ₹40.70 | ₹40,700.00 |
1 × ₹91.62
₹91.62
excl. GST
₹108.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF9510PBF
₹91.62 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 94pF
- Ciss-Input Capacitance
- 200pF
- Pd - Power Dissipation
- 43W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 2.8A
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 1.2Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8.7nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.798 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Key features
- Dynamic dV/dt rating
- Repetitive avalanche rated Available
- P-channel RoHS
- 175 °C operating temperature Available
- Fast switching
- Ease of paralleling
- Simple drive requirements
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF9520PBF#C469332VISHAY · TO-220AB | VISHAY | TO-220AB | 1 | ₹609.57 · 1 in stock | View |
 | IRF9610PBF-VB#C52989015VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 4 | ₹111.03 · 4 in stock | View |
 | IRF9630PBF#C2627VISHAY · TO-220AB | VISHAY | TO-220AB | 6,388 | ₹74.01 · 6,388 in stock | View |
 | IRF9530PBF#C2927630VISHAY · TO-220AB | VISHAY | TO-220AB | 496 | ₹155.00 · 496 in stock | View |
 | IRF9530NPBF#C2574Infineon · TO-220AB | Infineon | TO-220AB | 11,840 | ₹45.29 · 11,840 in stock | View |
