VISHAYDatasheet (PDF)

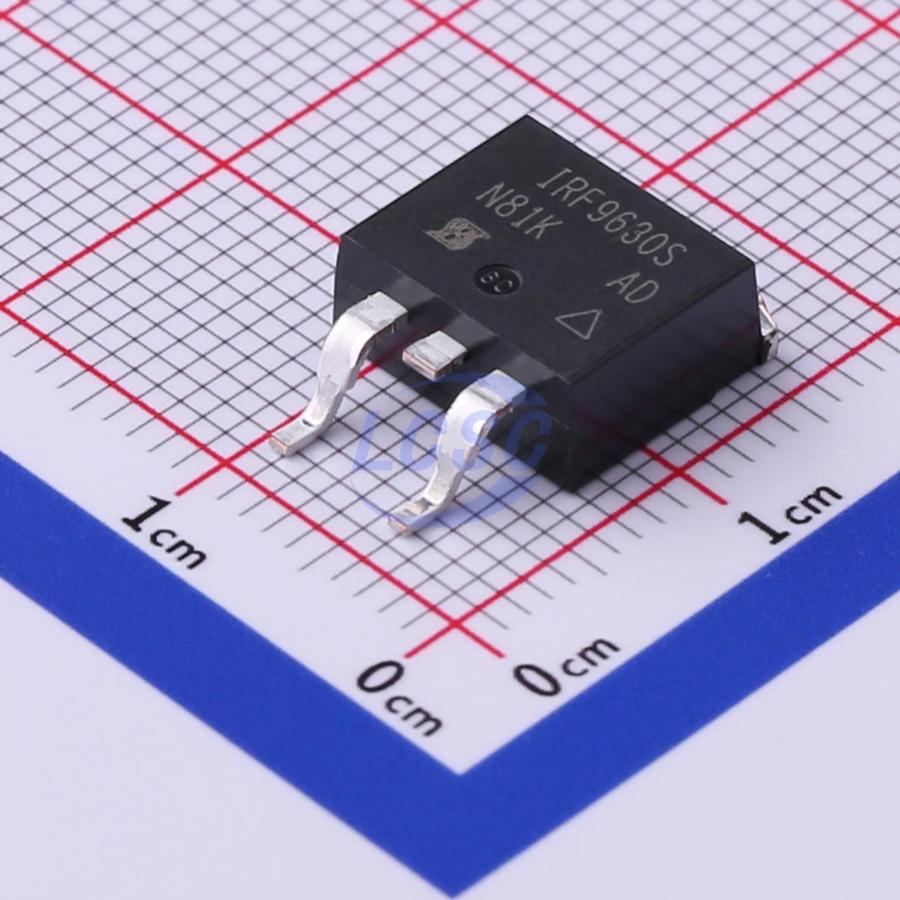

IRF9630STRLPBF
P-Channel 200V 6.5A 74W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)ROHS3 CompliantActive
MOSFET P-CH 200V 6.5A TO-263(D2PAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF9630STRLPBF
- Store part #
- C511030
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C511030
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹183.41 | ₹183.41 |
| 10+ | ₹179.49 | ₹1,794.90 |
| 30+ | ₹176.89 | ₹5,306.70 |
| 100+ | ₹157.54 | ₹15,754.00 |
1 × ₹183.41
₹183.41
excl. GST
₹216.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRF9630STRLPBF
₹183.41 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 200pF
- Ciss-Input Capacitance
- 700pF
- Pd - Power Dissipation
- 74W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 6.5A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 800mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 29nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.654 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The D2PAK (TO-263) is a surface mount power package capable of accommodating die size up to HEX-4. It provides the highest power capability and the lowest possible on-resistance in any existing surface mount package. The D2PAK (TO-263) is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2.0 W in a typical surface mount application.
Key features
- Surface mount
- Available in tape and reel
- Dynamic dV/dt rating
- Repetitive avalanche rated
- P-channel
- Fast switching
- Ease of paralleling
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF9630S-TP#C48995527TECH PUBLIC · TO-263 | TECH PUBLIC | TO-263 | 390 | ₹141.65 · 390 in stock | View |
| HSH10P20#C42376819HUASHUO · TO-263 | HUASHUO | TO-263 | 580 | ₹66.28 · 580 in stock | View | |
| SIHF9630STRL-GE3#C6488234VISHAY · TO-263 | VISHAY | TO-263 | 100 | ₹396.34 · 100 in stock | View | |
 | IRF9640SPBF#C540971VISHAY · D2PAK(TO-263) | VISHAY | D2PAK(TO-263) | 5,800 | ₹252.55 · 5,800 in stock | View |
 | IRF9640STRL-MNS#C55079401Minos · TO-263 | Minos | TO-263 | 770 | ₹146.73 · 770 in stock | View |
