VBsemi ElecDatasheet (PDF)

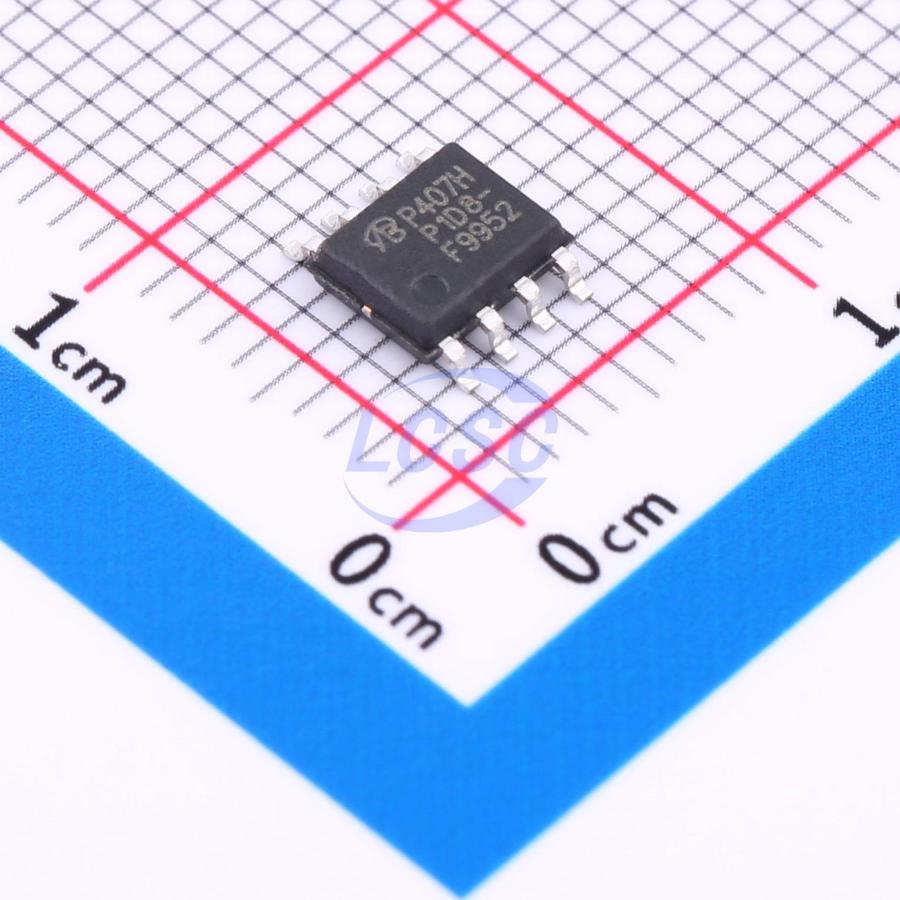

IRF9952TRPBF-VB
N-Channel+P-Channel Array 30V 8A 3.2W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF9952TRPBF-VB
- Store part #
- C20754918
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C20754918
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.34 | ₹58.34 |
| 10+ | ₹47.03 | ₹470.30 |
| 30+ | ₹42.24 | ₹1,267.20 |
| 100+ | ₹36.14 | ₹3,614.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹58.34
₹58.34
excl. GST
₹68.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF9952TRPBF-VB
₹58.34 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 115pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 620pF
- Pd - Power Dissipation
- 3.2W
- Reverse Transfer Capacitance (Crss)
- 57pF
- RDS(on)
- 50mΩ@4.5V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 18.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.162 g
Overview
Applications
- Motor Drive - Power Bank
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rq and UIS tested
- Compliant with RoHS Directive 2002/95/EC
