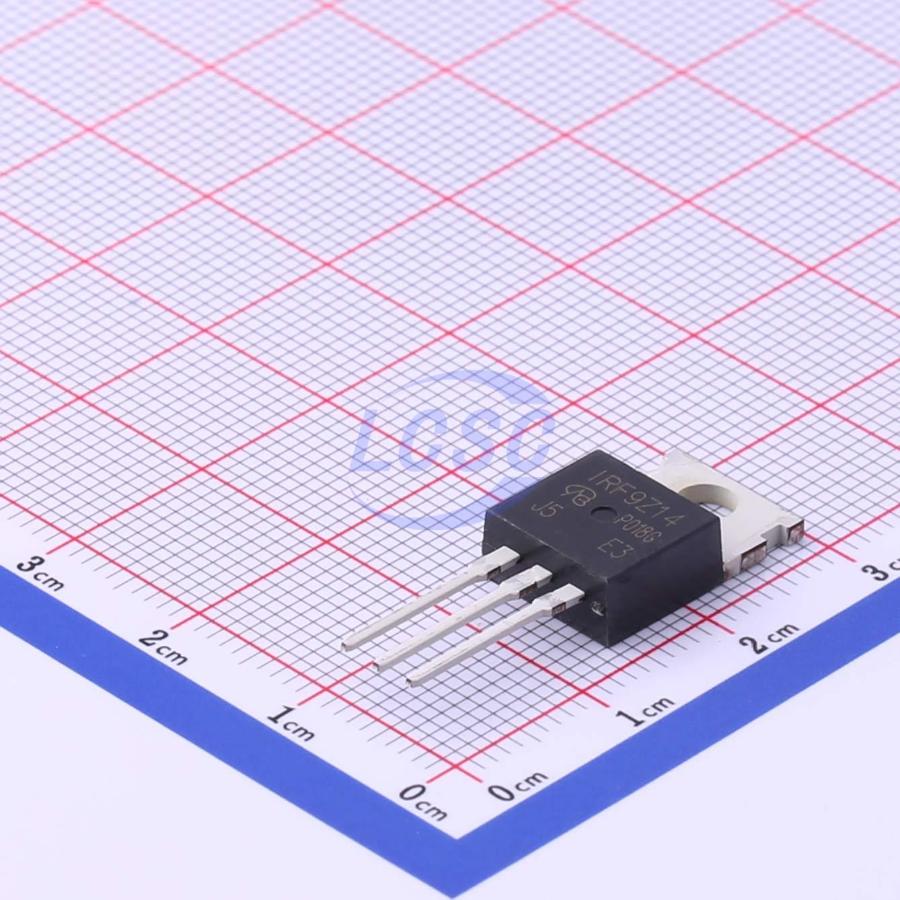

IRF9Z14PBF-VB
P-Channel 60V 40A 2W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 60V 40A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF9Z14PBF-VB
- Store part #
- C693249
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C693249
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.91 | ₹116.91 |
| 10+ | ₹98.84 | ₹988.40 |
| 50+ | ₹69.02 | ₹3,451.00 |
| 100+ | ₹60.09 | ₹6,009.00 |
| 500+ | ₹54.86 | ₹27,430.00 |
| 1,000+ | ₹52.03 | ₹52,030.00 |
1 × ₹116.91
₹116.91
excl. GST
₹137.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF9Z14PBF-VB
₹116.91 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 62mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 13nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.7 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% tested for unclamped inductive switching (UIS)
