InfineonDatasheet (PDF)

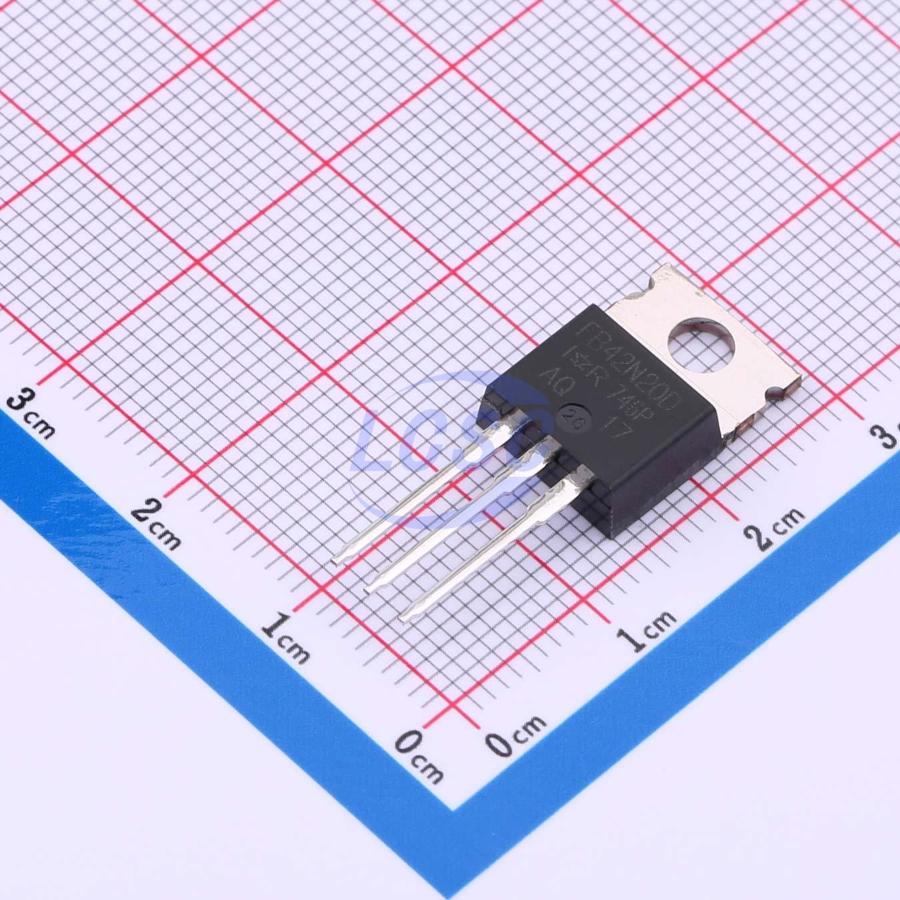

IRFB42N20DPBF
200V 44A 330W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET 200V 44A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRFB42N20DPBF
- Store part #
- C495799
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54 in stock
#C495799
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹483.33 | ₹483.33 |
| 10+ | ₹413.29 | ₹4,132.90 |
| 50+ | ₹371.45 | ₹18,572.50 |
| 100+ | ₹329.39 | ₹32,939.00 |
| 500+ | ₹309.87 | ₹1,54,935.00 |
| 1,000+ | ₹301.19 | ₹3,01,190.00 |
1 × ₹483.33
₹483.33
excl. GST
₹570.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB42N20DPBF
₹483.33 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 530pF
- Ciss-Input Capacitance
- 3.43nF
- Pd - Power Dissipation
- 330W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 44A
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 55mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 140nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.35 g
Overview
Applications
- High frequency DC-DC converters
- Motor Control
- Uninterrutible Power Supplies
Key features
- Low Gate-to-Drain Charge to Reduce Switching Losses
- Fully Characterized Capacitance Including Effective CSS to Simplify Design
- Fully Characterized Avalanche Voltage and Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDP51N25#C188505onsemi · TO-220 | onsemi | TO-220 | 64 | ₹273.79 · 64 in stock | View |
 | IRFB4229PBF#C2653Infineon · TO-220AB | Infineon | TO-220AB | 7,443 | ₹214.43 · 7,443 in stock | View |
 | FDP52N20#C410937onsemi · TO-220 | onsemi | TO-220 | 484 | ₹320.42 · 484 in stock | View |
 | IRFB4227PBF#C2652Infineon · TO-220AB | Infineon | TO-220AB | 33,524 | ₹133.72 · 33,524 in stock | View |
 | H40N25#C49823495Huixin · TO-220AB | Huixin | TO-220AB | 76 | ₹263.87 · 76 in stock | View |
