InfineonDatasheet (PDF)

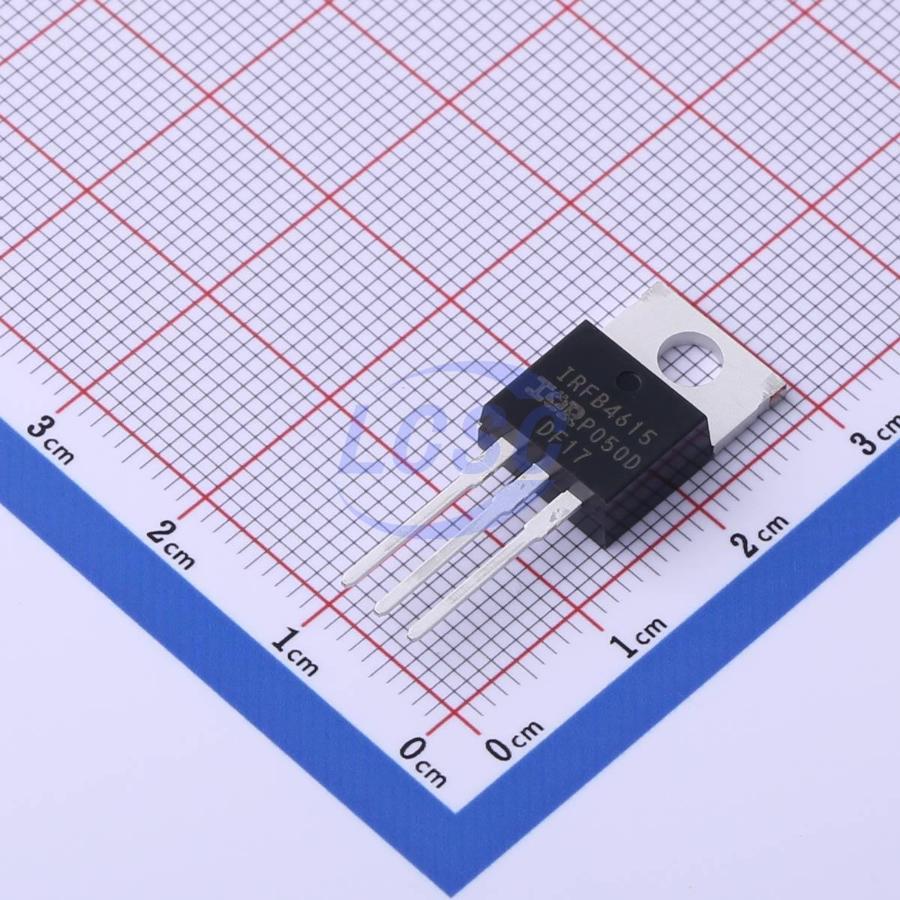

IRFB4615PBF
144W 150V 35A 32mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs RoHS
TO-220ABROHS3 CompliantActive
HEXFET Power MOSFET
- Manufacturer
- Infineon
- Manufacturer part #
- IRFB4615PBF
- Store part #
- C537864
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
79 in stock
#C537864
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹169.16 | ₹169.16 |
| 10+ | ₹143.03 | ₹1,430.30 |
| 50+ | ₹105.80 | ₹5,290.00 |
| 100+ | ₹89.47 | ₹8,947.00 |
| 500+ | ₹82.29 | ₹41,145.00 |
| 1,000+ | ₹79.02 | ₹79,020.00 |
1 × ₹169.16
₹169.16
excl. GST
₹199.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB4615PBF
₹169.16 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 155pF
- Ciss-Input Capacitance
- 1.75nF
- Pd - Power Dissipation
- 144W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 35A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 32mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Applications
- High Efficiency Synchronous Rectification in SMPS
- Uninterruptible Power Supply
- High Speed Power Switching
- Hard Switched and High Frequency Circuits
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dl/dt Capability
- Lead-Free
