VBsemi ElecDatasheet (PDF)

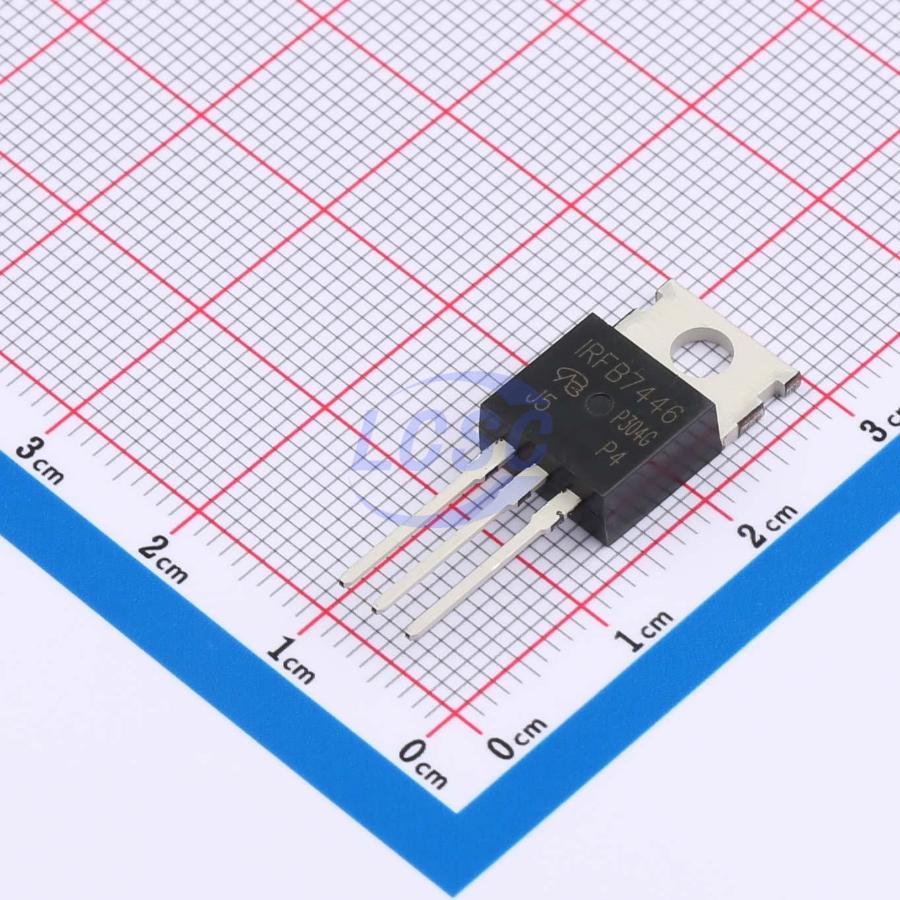

IRFB7446PBF-VB
N-Channel 40V 180A 3.1W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 40V 180A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFB7446PBF-VB
- Store part #
- C7463573
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C7463573
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹209.01 | ₹209.01 |
| 10+ | ₹175.81 | ₹1,758.10 |
| 50+ | ₹146.63 | ₹7,331.50 |
| 100+ | ₹126.04 | ₹12,604.00 |
| 500+ | ₹116.79 | ₹58,395.00 |
| 1,000+ | ₹112.60 | ₹1,12,600.00 |
1 × ₹209.01
₹209.01
excl. GST
₹246.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB7446PBF-VB
₹209.01 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 180A
- Ciss-Input Capacitance
- 9nF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.672 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRL1404ZPBF-VB#C7463581VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹201.45 · 3 in stock | View |
 | CSD18502KCS-VB#C18212515VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 19 | ₹180.91 · 19 in stock | View |
 | AUIRFB8405-VB#C19711228VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹203.37 · 5 in stock | View |
 | AUIRF1404Z-VB#C20755089VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹192.84 · 2 in stock | View |
 | IPP120N04S4-01-VB#C22388999VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹201.03 · 5 in stock | View |
