InfineonDatasheet (PDF)

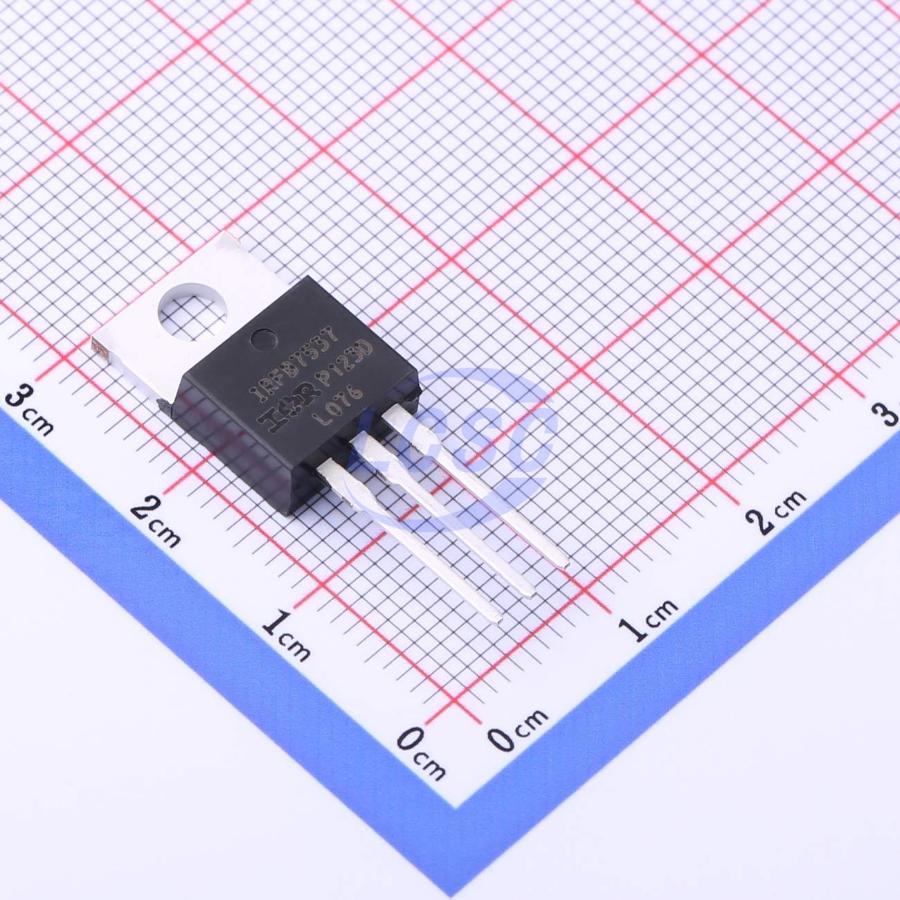

IRFB7537PBF
N-Channel 60V 173A 230W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 60V 173A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRFB7537PBF
- Store part #
- C537871
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
146 in stock
#C537871
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.08 | ₹116.08 |
| 10+ | ₹94.74 | ₹947.40 |
| 50+ | ₹84.29 | ₹4,214.50 |
| 100+ | ₹73.61 | ₹7,361.00 |
| 500+ | ₹67.30 | ₹33,650.00 |
| 1,000+ | ₹64.03 | ₹64,030.00 |
1 × ₹116.08
₹116.08
excl. GST
₹136.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB7537PBF
₹116.08 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 640pF
- Ciss-Input Capacitance
- 7.02nF
- Pd - Power Dissipation
- 230W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 173A
- Reverse Transfer Capacitance (Crss)
- 395pF
- RDS(on)
- 2.75mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 142nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.859 g
Overview
Applications
- Brushed Motor drive applications
- BLDC Motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
- DC/DC and AC/DC converters
- DC/AC Inverters
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
- Lead-Free, RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP60N03HTQ#C41355055Siliup · TO-220 | Siliup | TO-220 | 581 | ₹54.48 · 581 in stock | View |
 | PSMN4R4-80PS,127-VB#C52191096VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹208.99 · 5 in stock | View |
 | MPT035N08#C5240681Minos · TO-220 | Minos | TO-220 | 92 | ₹109.52 · 92 in stock | View |
 | MPT180N08#C6719386Minos · TO-220 | Minos | TO-220 | 462 | ₹84.00 · 462 in stock | View |
 | STP315N10F7-VB#C7568925VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹332.64 · 20 in stock | View |
