InfineonDatasheet (PDF)

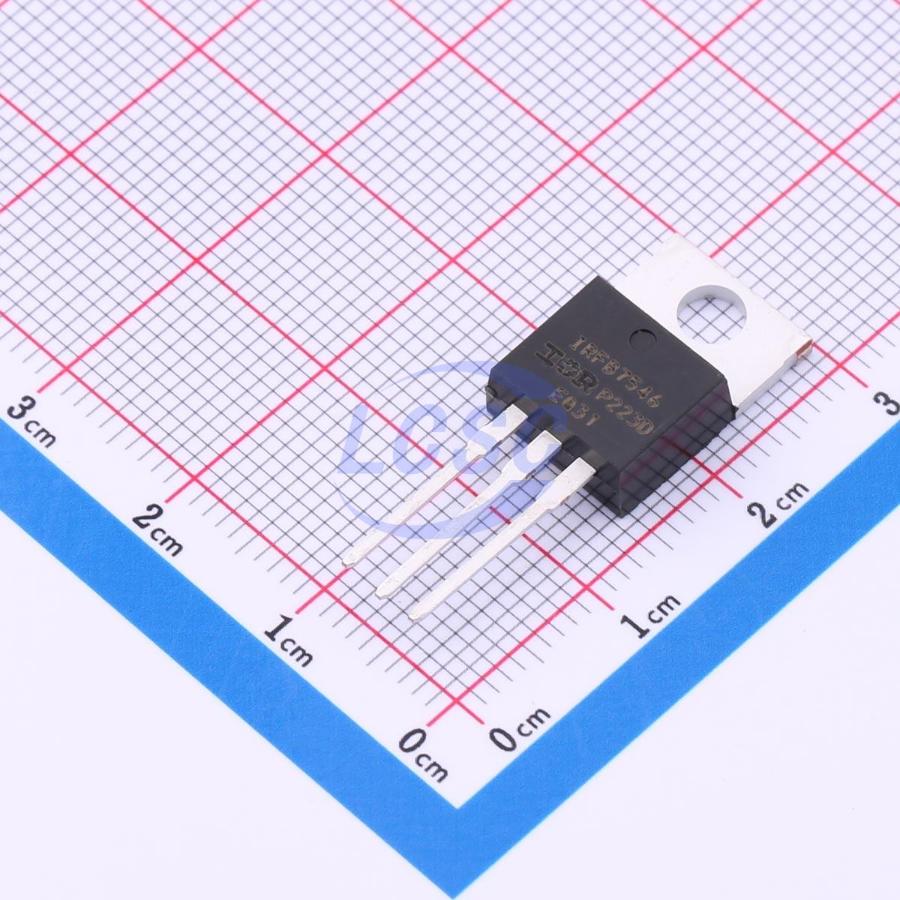

IRFB7546PBF
N-Channel 60V 75A 99W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 60V 75A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRFB7546PBF
- Store part #
- C537873
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C537873
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹210.86 | ₹210.86 |
| 10+ | ₹157.17 | ₹1,571.70 |
| 30+ | ₹123.36 | ₹3,700.80 |
| 100+ | ₹88.93 | ₹8,893.00 |
| 500+ | ₹73.16 | ₹36,580.00 |
| 1,000+ | ₹66.40 | ₹66,400.00 |
1 × ₹210.86
₹210.86
excl. GST
₹248.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per tube
IRFB7546PBF
₹210.86 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 280pF
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 99W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 7.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 87nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,000 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.95 g
Overview
Applications
- Brushed Motor drive applications
- BLDC Motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
- DC/DC and AC/DC converters
- DC/AC Inverters
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
- Lead-Free, RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP60N06HTQ#C41355059Siliup · TO-220 | Siliup | TO-220 | 1,025 | ₹51.07 · 1,025 in stock | View |
 | JMTC80N06A#C3031546Jiangsu JieJie Microelectronics · TO-220C | Jiangsu JieJie Microelectronics | TO-220C | 16 | ₹59.68 · 16 in stock | View |
 | MPG100N06#C2980288Minos · TO-220 | Minos | TO-220 | 320 | ₹56.81 · 320 in stock | View |
 | BRCS100N06RA#C22449013BLUE ROCKET · TO-220 | BLUE ROCKET | TO-220 | 993 | ₹39.31 · 993 in stock | View |
 | IPP082N10NF2S#C2974322Infineon · TO-220-3 | Infineon | TO-220-3 | 410 | ₹167.04 · 410 in stock | View |
