InfineonDatasheet (PDF)

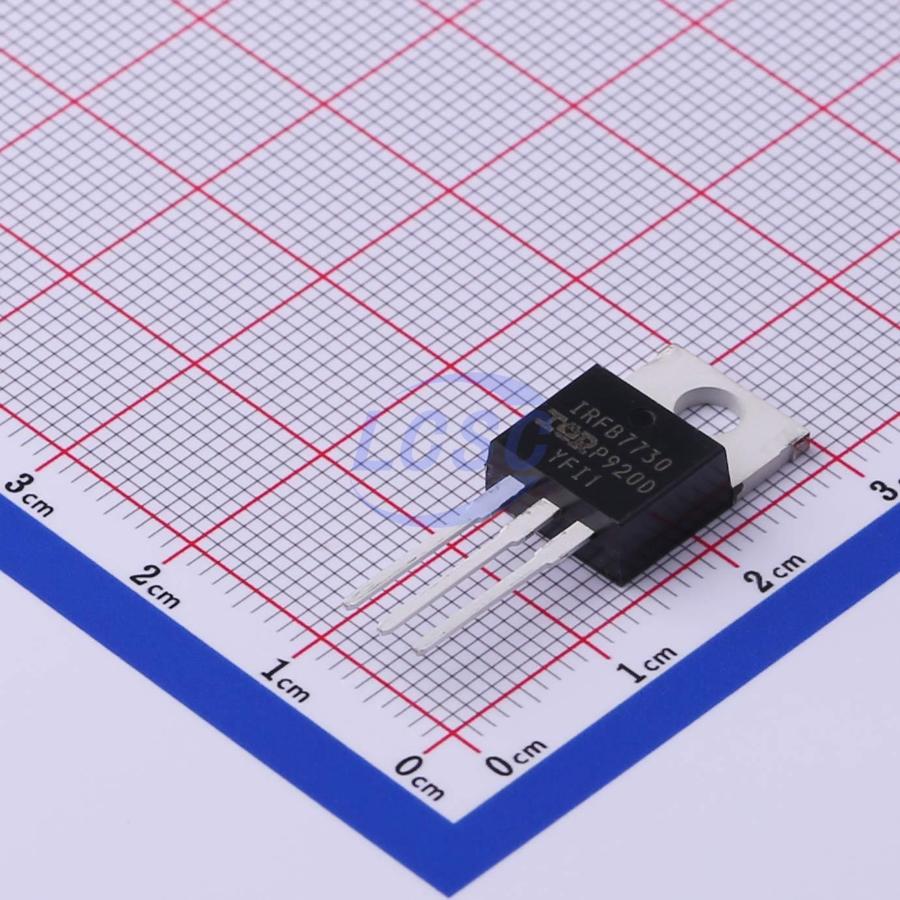

IRFB7730PBF
N-Channel 75V 246A 375W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 75V 246A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRFB7730PBF
- Store part #
- C495807
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C495807
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹211.64 | ₹211.64 |
| 10+ | ₹174.99 | ₹1,749.90 |
| 50+ | ₹154.83 | ₹7,741.50 |
| 100+ | ₹132.06 | ₹13,206.00 |
| 500+ | ₹121.87 | ₹60,935.00 |
| 1,000+ | ₹117.31 | ₹1,17,310.00 |
1 × ₹211.64
₹211.64
excl. GST
₹249.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB7730PBF
₹211.64 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.12nF
- Ciss-Input Capacitance
- 13.66nF
- Pd - Power Dissipation
- 375W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 246A
- Reverse Transfer Capacitance (Crss)
- 690pF
- RDS(on)
- 2.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 407nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.873 g
Overview
Applications
- Brushed motor drive applications
- BLDC motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
- DC/DC and AC/DC converters
- DC/AC inverters
Key features
- Improved gate, avalanche and dynamic dV/dt ruggedness
- Fully characterized capacitance and avalanche SOA
- Enhanced body diode dV/dt and dI/dt capability
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSP10NH028SK1#C54906935Bestirpower · TO-220 | Bestirpower | TO-220 | 484 | ₹80.87 · 484 in stock | View |
 | OSP300N10G#C45359868OSEN · TO-220AB | OSEN | TO-220AB | 8 | ₹203.40 · 8 in stock | View |
 | LWT1H014H8#C54221111Lewa Micro · TO-220AB | Lewa Micro | TO-220AB | 28 | ₹282.38 · 28 in stock | View |
 | HSP0076A#C2903573HUASHUO · TO-220 | HUASHUO | TO-220 | 110 | ₹286.58 · 110 in stock | View |
 | FDP032N08#C899144onsemi · TO-220 | onsemi | TO-220 | 68 | ₹616.68 · 68 in stock | View |
