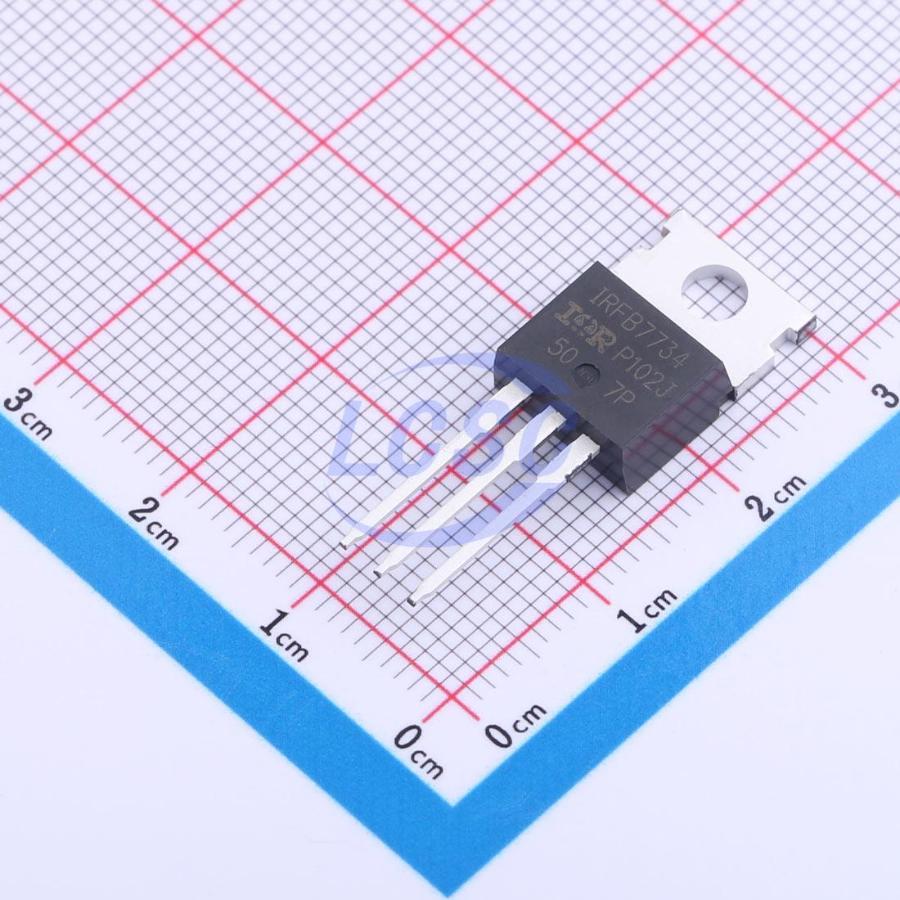

IRFB7734PBF
N-Channel 75V 183A 290W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 75V 183A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRFB7734PBF
- Store part #
- C537874
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C537874
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.94 | ₹77.94 |
| 10+ | ₹62.26 | ₹622.60 |
| 50+ | ₹54.43 | ₹2,721.50 |
| 100+ | ₹46.81 | ₹4,681.00 |
| 500+ | ₹42.24 | ₹21,120.00 |
| 1,000+ | ₹39.85 | ₹39,850.00 |
1 × ₹77.94
₹77.94
excl. GST
₹91.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB7734PBF
₹77.94 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 816pF
- Ciss-Input Capacitance
- 10.15nF
- Pd - Power Dissipation
- 290W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 183A
- Reverse Transfer Capacitance (Crss)
- 500pF
- RDS(on)
- 2.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 270nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.82 g
Overview
Applications
- Brushed motor drive applications
- BLDC motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
- DC/DC and AC/DC converters
- DC/AC inverters
Key features
- Improved gate, avalanche and dynamic dV/dt ruggedness
- Fully characterized capacitance and avalanche SOA
- Enhanced body diode dV/dt and dI/dt capability
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSP10NH028SK1#C54906935Bestirpower · TO-220 | Bestirpower | TO-220 | 484 | ₹80.87 · 484 in stock | View |
 | IRFB3207PBF-MNS#C54839591Minos · TO-220 | Minos | TO-220 | 949 | ₹145.42 · 949 in stock | View |
 | CSD19505KCS#C485534TI · TO-220 | TI | TO-220 | 142 | ₹228.30 · 142 in stock | View |
 | NCEP026N10#C2686668NCE · TO-220 | NCE | TO-220 | 894 | ₹304.54 · 894 in stock | View |
 | PSMN4R4-80PS,127-VB#C52191096VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹208.99 · 5 in stock | View |
