InfineonDatasheet (PDF)

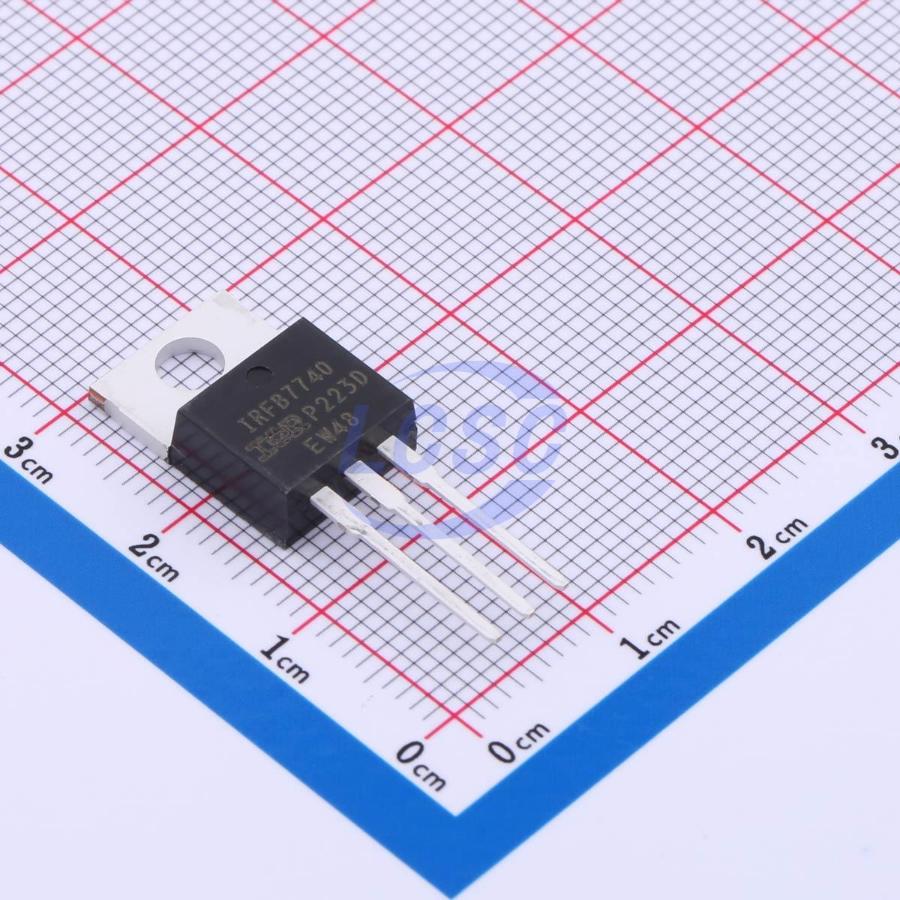

IRFB7740PBF
N-Channel 75V 87A 143W Through Hole TO-220AB
TO-220ABROHS CompliantDiscontinued
MOSFET N-CH 75V 87A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRFB7740PBF
- Store part #
- C537875
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C537875
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹194.44 | ₹194.44 |
| 10+ | ₹168.60 | ₹1,686.00 |
| 50+ | ₹154.61 | ₹7,730.50 |
| 100+ | ₹138.68 | ₹13,868.00 |
| 500+ | ₹131.57 | ₹65,785.00 |
| 1,000+ | ₹128.34 | ₹1,28,340.00 |
1 × ₹194.44
₹194.44
excl. GST
₹229.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB7740PBF
₹194.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 370pF
- Ciss-Input Capacitance
- 4.65nF
- Pd - Power Dissipation
- 143W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 87A
- Reverse Transfer Capacitance (Crss)
- 240pF
- RDS(on)
- 7.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 122nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.86 g
Overview
Applications
- Brushed Motor drive applications
- BLDC Motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
- DC/DC and AC/DC converters
- DC/AC Inverters
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
- Lead-Free, RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DOP95N08#C42395902DOINGTER · TO-220 | DOINGTER | TO-220 | 496 | ₹61.72 · 496 in stock | View |
 | HP100N08#C5187737HL(Haolin Elec) · TO-220 | HL(Haolin Elec) | TO-220 | 16 | ₹80.84 · 16 in stock | View |
 | NCE8295A#C341725NCE · TO-220-3L | NCE | TO-220-3L | 931 | ₹90.07 · 931 in stock | View |
 | TTP88N08A#C691692WUXI UNIGROUP MICRO · TO-220 | WUXI UNIGROUP MICRO | TO-220 | 8 | ₹62.88 · 8 in stock | View |
 | APG080N12#C5443657ALLPOWER · TO-220 | ALLPOWER | TO-220 | 77 | ₹230.47 · 77 in stock | View |
