VISHAYDatasheet (PDF)

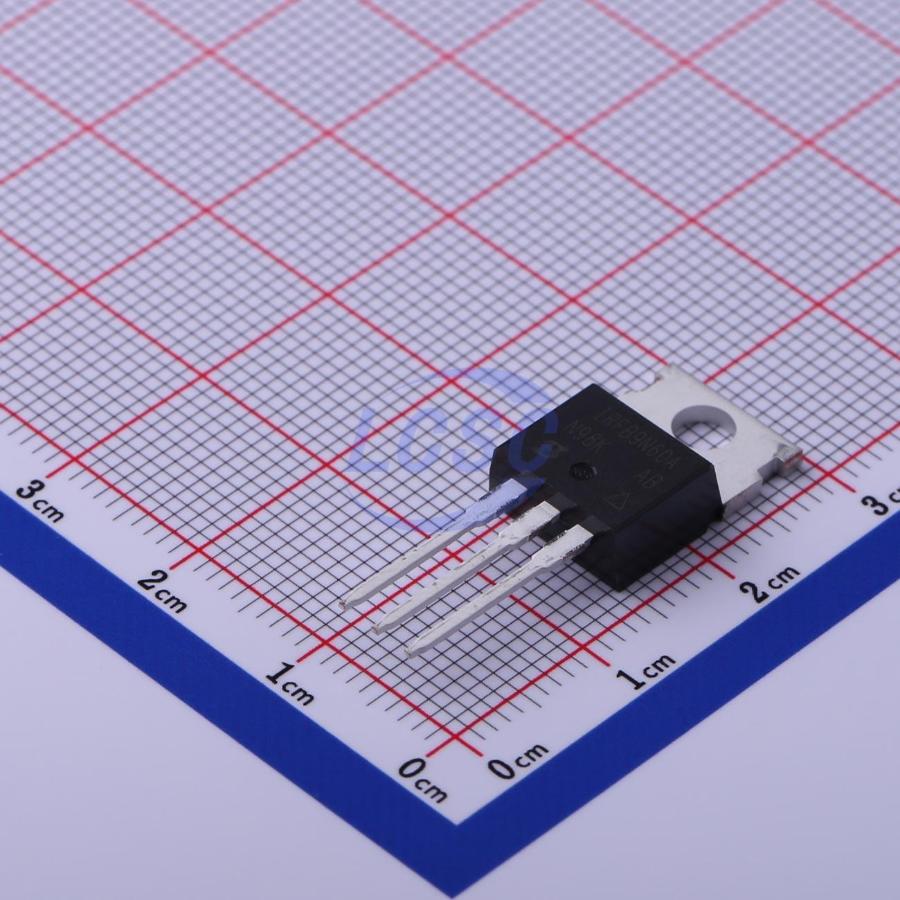

IRFB9N60APBF
N-Channel 600V 9.2A 170W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 600V 9.2A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFB9N60APBF
- Store part #
- C466975
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
962 in stock
#C466975
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹271.89 | ₹271.89 |
| 10+ | ₹238.50 | ₹2,385.00 |
| 50+ | ₹217.69 | ₹10,884.50 |
| 100+ | ₹196.23 | ₹19,623.00 |
| 500+ | ₹186.46 | ₹93,230.00 |
| 1,000+ | ₹182.35 | ₹1,82,350.00 |
1 × ₹271.89
₹271.89
excl. GST
₹320.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB9N60APBF
₹271.89 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 180pF
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 170W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 9.2A
- Reverse Transfer Capacitance (Crss)
- 7.1pF
- RDS(on)
- 750mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 49nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.739 g
Overview
Applications
- Switched-Mode Power Supplies (SMPS)
- Uninterruptible Power Supplies
- High-Speed Power Switching
- Active Clamp Forward Converter: Main Switch
Key features
- Low gate charge Qg, simple drive requirements
- Improved gate, avalanche, and dynamic dV/dt ruggedness
- Fully characterized capacitance, avalanche voltage, and current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LNC12N60#C439152LONTEN · TO-220 | LONTEN | TO-220 | 1 | ₹67.27 · 1 in stock | View |
 | MS10N60FT#C7424108MASPOWER · TO-220 | MASPOWER | TO-220 | 127 | ₹122.22 · 127 in stock | View |
 | TSP10N60M#C439878Truesemi · TO-220 | Truesemi | TO-220 | 3 | ₹75.05 · 3 in stock | View |
 | 15N65-TD#C42422145TDSEMIC · TO-220 | TDSEMIC | TO-220 | 88 | ₹89.32 · 88 in stock | View |
 | TK10A60D(STA4,X,S)#C2848495TOSHIBA · TO-220 | TOSHIBA | TO-220 | 6,570 | ₹101.88 · 6,570 in stock | View |
