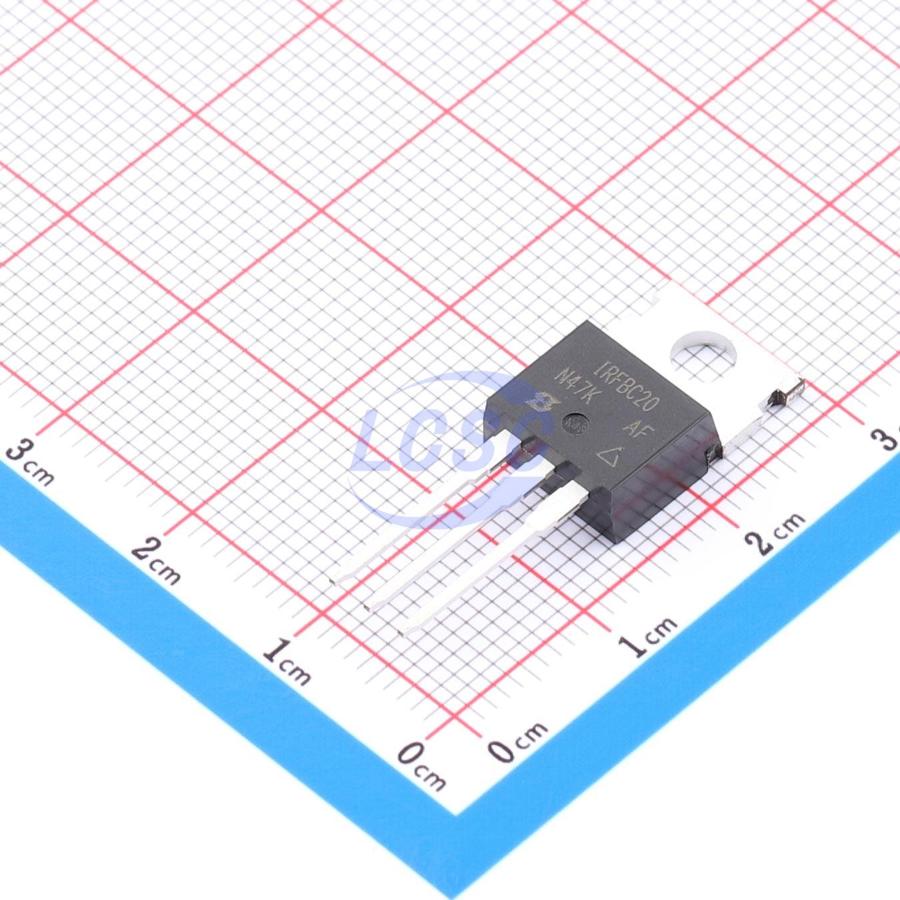

VISHAYDatasheet (PDF)
IRFBC20PBF
50W 600V 2.2A 4.4Ω@10V 1 N-channel N-Channel TO-220AB-3 Single FETs, MOSFETs RoHS
TO-220AB-3ROHS3 CompliantActive
MOSFET N-CH 600V 2.2A TO-220AB-3
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFBC20PBF
- Store part #
- C2892050
- Package / case
- TO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69 in stock
#C2892050
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.73 | ₹129.73 |
| 10+ | ₹106.05 | ₹1,060.50 |
| 30+ | ₹93.23 | ₹2,796.90 |
| 100+ | ₹78.45 | ₹7,845.00 |
| 500+ | ₹71.93 | ₹35,965.00 |
| 1,000+ | ₹69.11 | ₹69,110.00 |
1 × ₹129.73
₹129.73
excl. GST
₹153.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
IRFBC20PBF
₹129.73 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 48pF
- Ciss-Input Capacitance
- 350pF
- Pd - Power Dissipation
- 50W
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 2.2A
- Reverse Transfer Capacitance (Crss)
- 8.6pF
- RDS(on)
- 4.4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.912 g
Overview
The third-generation power MOSFETs offer designers an optimal combination of fast switching, rugged device design, low on-resistance, and high cost-effectiveness. The TO-220AB package is widely preferred across all commercial-industrial applications with power dissipation up to approximately 50 W. Its low thermal resistance and low package cost have made the TO-220AB universally recognized throughout the industry.
Applications
- Inverter system power management.
Key features
- Dynamic dV/dt rated
- Repetitive avalanche rated
- Fast switching
- Easy to parallel
- Simple drive requirement
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WGP4N60SE#C7541363Wild Goose · TO-220 | Wild Goose | TO-220 | 410 | ₹27.78 · 410 in stock | View |
 | WGP4N65SE#C7541354Wild Goose · TO-220 | Wild Goose | TO-220 | 905 | ₹27.78 · 905 in stock | View |
 | WGP5N60SE#C7541364Wild Goose · TO-220 | Wild Goose | TO-220 | 775 | ₹27.17 · 775 in stock | View |
| STP3NK60Z#C3280397ST · TO-220 | ST | TO-220 | 130 | ₹413.25 · 130 in stock | View | |
 | IPP80R900P7XKSA1#C3278798Infineon · TO-220-3 | Infineon | TO-220-3 | 2 | ₹499.01 · 2 in stock | View |
