VISHAYDatasheet (PDF)

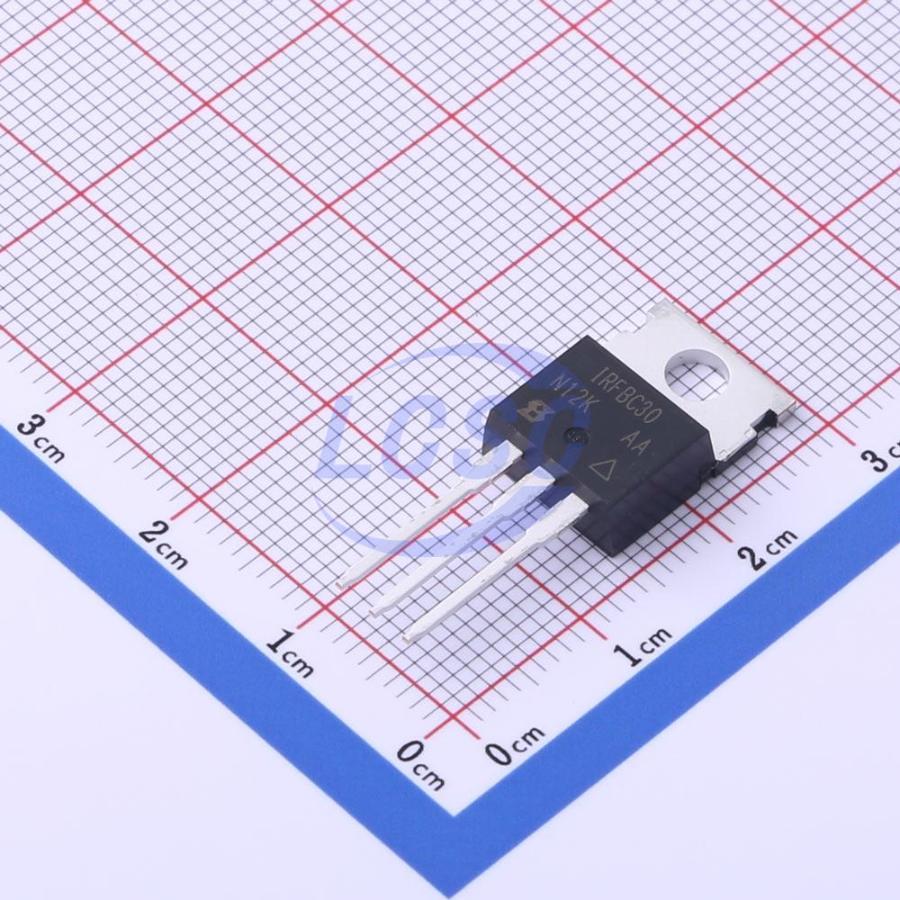

IRFBC30PBF
N-Channel 600V 3.6A 74W Through Hole TO-220AB
TO-220ABROHS3 CompliantDiscontinued
MOSFET N-CH 600V 3.6A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFBC30PBF
- Store part #
- C2838497
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C2838497
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.93 | ₹109.93 |
| 10+ | ₹86.17 | ₹861.70 |
| 50+ | ₹74.18 | ₹3,709.00 |
| 100+ | ₹62.41 | ₹6,241.00 |
| 500+ | ₹55.38 | ₹27,690.00 |
| 1,000+ | ₹51.66 | ₹51,660.00 |
1 × ₹109.93
₹109.93
excl. GST
₹129.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFBC30PBF
₹109.93 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 86pF
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 74W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 3.6A
- Reverse Transfer Capacitance (Crss)
- 19pF
- RDS(on)
- 2.2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.95 g
Overview
Third generation Power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Applications
- DC-DC converter
- DC-DC inverter
- Power supply
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OSP5N60C#C20607811OSEN · TO-220AB | OSEN | TO-220AB | 795 | ₹26.35 · 795 in stock | View |
 | IRFBC30APBF#C506482VISHAY · TO-220AB | VISHAY | TO-220AB | 615 | ₹139.31 · 615 in stock | View |
 | OSP4N65#C42381457OSEN · TO-220AB | OSEN | TO-220AB | 215 | ₹26.05 · 215 in stock | View |
 | IPA80R1K0CE#C672250Infineon · TO-220-3 | Infineon | TO-220-3 | 3,000 | ₹201.86 · 3,000 in stock | View |
| IPP60R170CFD7#C537207Infineon · TO-220-3 | Infineon | TO-220-3 | 14 | ₹258.16 · 14 in stock | View | |
