VISHAYDatasheet (PDF)

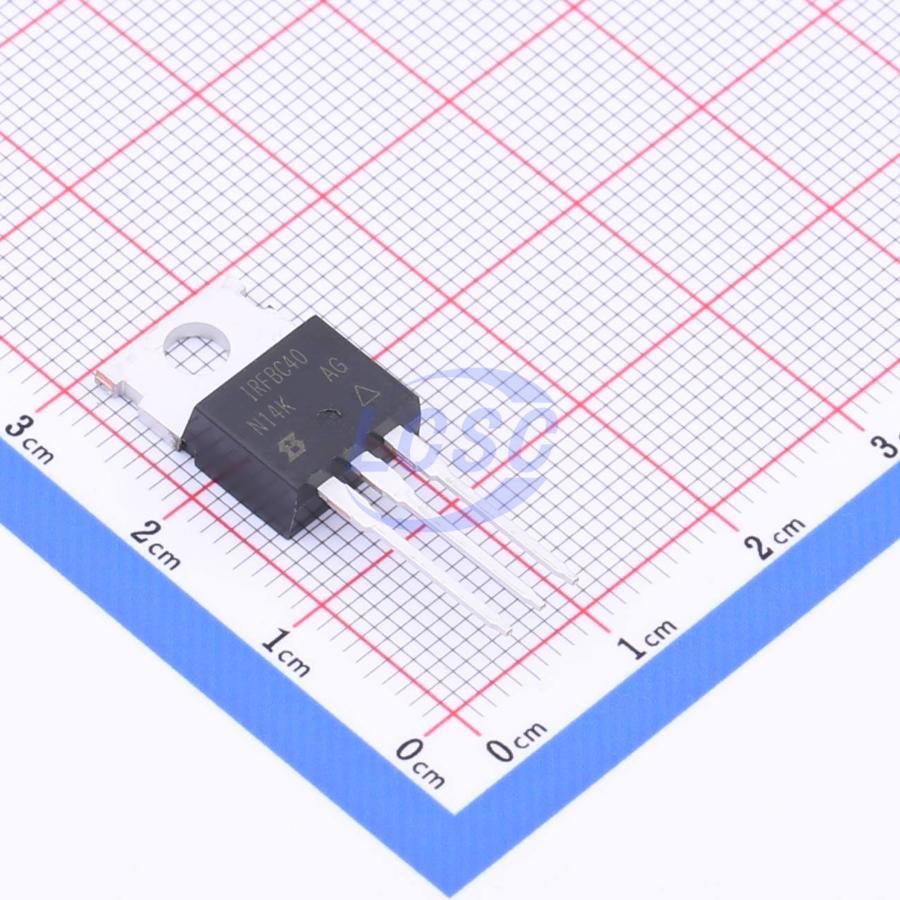

IRFBC40PBF
N-Channel 600V 6.2A 125W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 600V 6.2A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFBC40PBF
- Store part #
- C2859525
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C2859525
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹269.02 | ₹269.02 |
| 10+ | ₹233.60 | ₹2,336.00 |
| 50+ | ₹211.44 | ₹10,572.00 |
| 100+ | ₹188.62 | ₹18,862.00 |
| 500+ | ₹178.41 | ₹89,205.00 |
| 1,000+ | ₹174.07 | ₹1,74,070.00 |
1 × ₹269.02
₹269.02
excl. GST
₹317.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFBC40PBF
₹269.02 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 160pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 6.2A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 1.2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.96 g
Overview
Third generation Power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Applications
- Secondary-side synchronous rectifier
- Hot-swap telecom applications
- Motor control
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPP11N60C3XKSA1#C672222Infineon · TO-220-3 | Infineon | TO-220-3 | 68 | ₹398.96 · 68 in stock | View |
 | IRFBC40APBF#C466976VISHAY · TO-220AB | VISHAY | TO-220AB | 4,662 | ₹187.54 · 4,662 in stock | View |
 | STP22NM60N#C2688570ST · TO-220 | ST | TO-220 | 346 | ₹173.68 · 346 in stock | View |
 | OSP8N65C#C42381460OSEN · TO-220AB | OSEN | TO-220AB | 45 | ₹38.25 · 45 in stock | View |
 | MPC10N65#C17701984MIRACLE POWER · TO-220 | MIRACLE POWER | TO-220 | 50 | ₹49.92 · 50 in stock | View |
