VISHAYDatasheet (PDF)

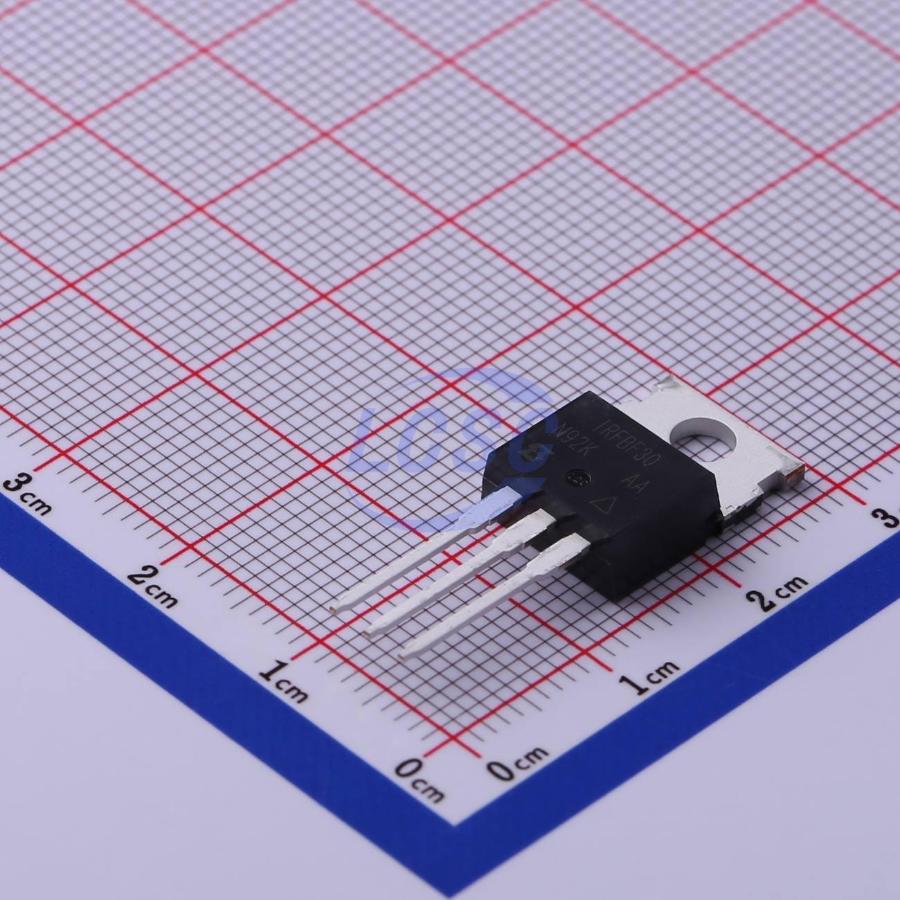

IRFBF30PBF
N-Channel 900V 2.3A 125W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 900V 2.3A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFBF30PBF
- Store part #
- C466978
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C466978
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹355.29 | ₹355.29 |
| 10+ | ₹314.21 | ₹3,142.10 |
| 50+ | ₹288.57 | ₹14,428.50 |
| 100+ | ₹262.28 | ₹26,228.00 |
| 500+ | ₹250.55 | ₹1,25,275.00 |
| 1,000+ | ₹245.34 | ₹2,45,340.00 |
1 × ₹355.29
₹355.29
excl. GST
₹419.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFBF30PBF
₹355.29 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 320pF
- Ciss-Input Capacitance
- 1.2nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 900V
- Current - Continuous Drain(Id)
- 2.3A
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 3.7Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 78nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.678 g
Overview
Third generation MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universially preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFBG30PBF#C2637VISHAY · TO-220 | VISHAY | TO-220 | 15,990 | ₹144.06 · 15,990 in stock | View |
 | STP5NK100Z#C283632ST · TO-220 | ST | TO-220 | 6 | ₹265.53 · 6 in stock | View |
| IRFBG30PBF-BE3#C5358932VISHAY · TO-220AB | VISHAY | TO-220AB | 7 | ₹435.47 · 7 in stock | View | |
 | STP8N90K5#C5268638ST · TO-220 | ST | TO-220 | 55 | ₹636.22 · 55 in stock | View |
 | MS8N120FT#C5139252MASPOWER · TO-220 | MASPOWER | TO-220 | 1 | ₹275.74 · 1 in stock | View |
