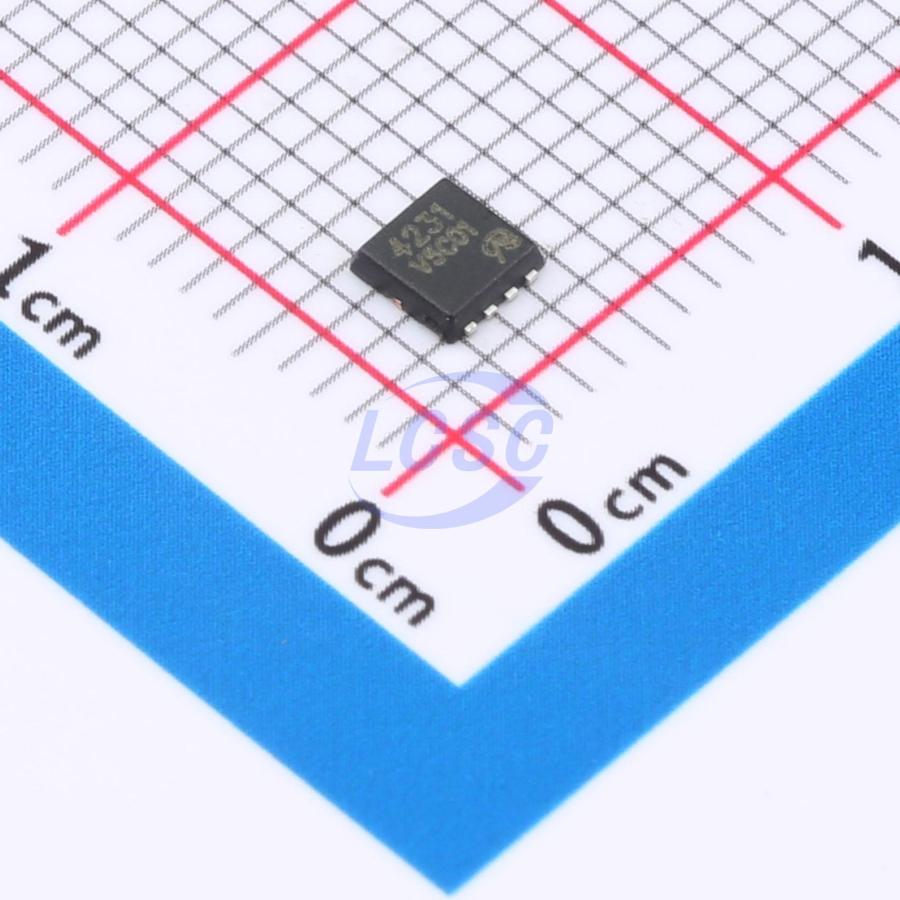

IRFHM4231TRPBF-VB
N-Channel 20V 100A 250W Surface Mount DFN3x3-8
DFN3x3-8RoHSActive
MOSFET N-CH 20V 100A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFHM4231TRPBF-VB
- Store part #
- C47993800
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993800
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.25 | ₹116.25 |
| 10+ | ₹99.49 | ₹994.90 |
| 30+ | ₹91.22 | ₹2,736.60 |
| 100+ | ₹82.95 | ₹8,295.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹116.25
₹116.25
excl. GST
₹137.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IRFHM4231TRPBF-VB
₹116.25 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 6.5nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 2.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 123nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.29 g
Overview
Applications
- OR-ing diode function
- Servers
- DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIS454DN-T1-GE3-VB#C47993744VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 52 | ₹71.97 · 52 in stock | View |
 | BSZ036NE2LSATMA1-VB#C47993861VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹116.25 · 10 in stock | View |
 | BSZ033NE2LS5ATMA1-VB#C47993862VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹116.25 · 10 in stock | View |
 | BSZ011NE2LS5IATMA1-VB#C47993867VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 5 | ₹98.62 · 5 in stock | View |
 | NTTFS4H05NTAG-VB#C47993948VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹87.90 · 10 in stock | View |
