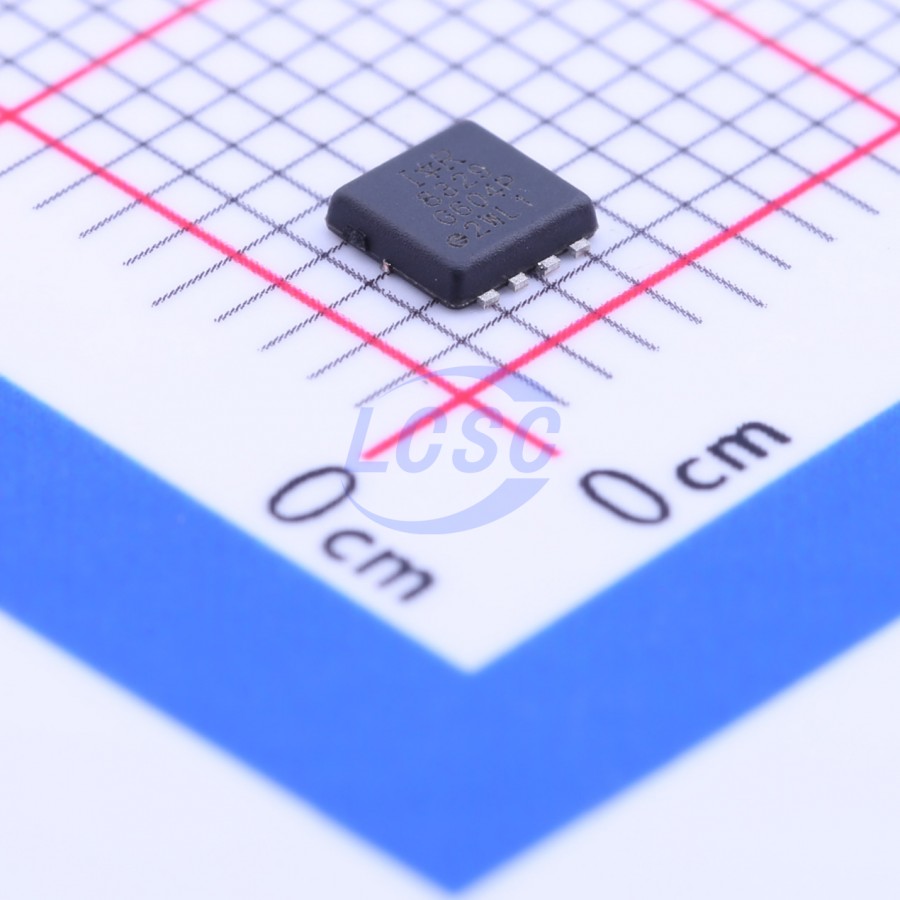

IRFHM8329TRPBF
N-Channel 30V 24A 33W Surface Mount PQFN-8(3.1x3.1)
PQFN-8(3.1x3.1)ROHS CompliantDiscontinued
MOSFET N-CH 30V 24A PQFN-8(3.1x3.1)
- Manufacturer
- Infineon
- Manufacturer part #
- IRFHM8329TRPBF
- Store part #
- C152439
- Package / case
- PQFN-8(3.1x3.1)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C152439
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.85 | ₹93.85 |
| 10+ | ₹91.60 | ₹916.00 |
| 30+ | ₹89.96 | ₹2,698.80 |
| 100+ | ₹88.52 | ₹8,852.00 |
1 × ₹93.85
₹93.85
excl. GST
₹110.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRFHM8329TRPBF
₹93.85 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 360pF
- Ciss-Input Capacitance
- 1.71nF
- Pd - Power Dissipation
- 33W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 24A
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 4.8mΩ@10V;6.8mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.196 g
Overview
Applications
- Charge and Discharge Switch for Notebook PC Battery Application
- System/Load Switch
- Synchronous MOSFET for Buck Converters
