TECH PUBLICDatasheet (PDF)

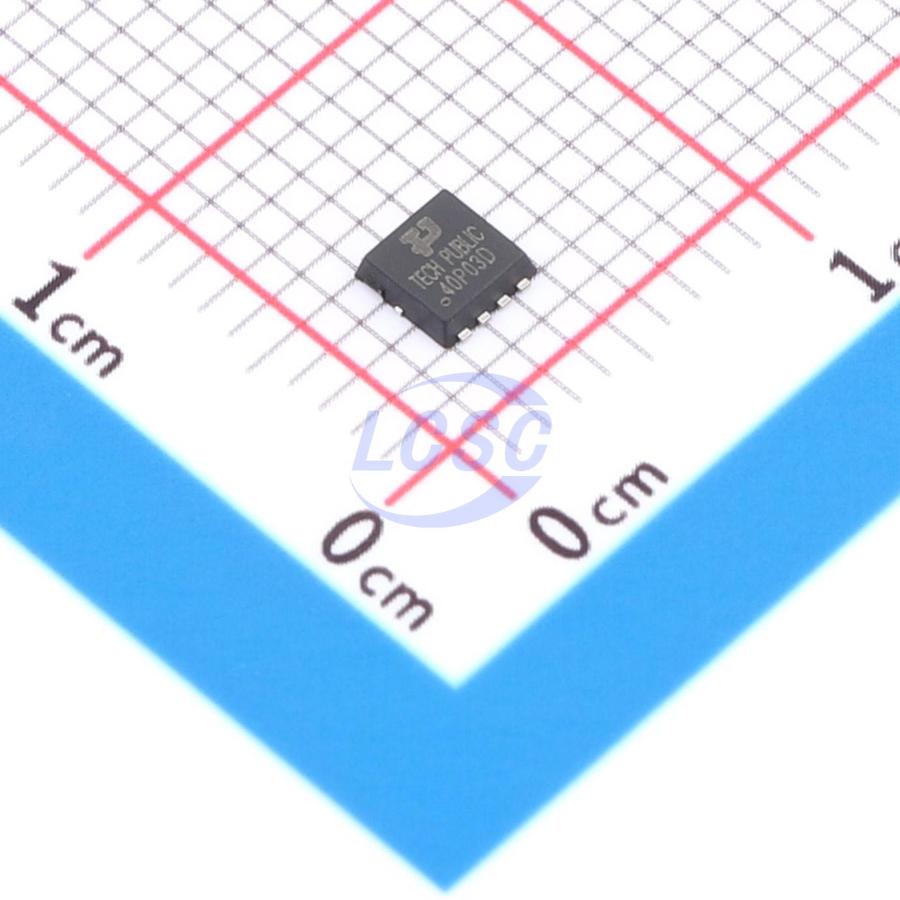

IRFHM9331TRPBF-TP
30V 40A 20W 12mΩ@10V 1 P-Channel PDFN-8L(3x3) Single FETs, MOSFETs RoHS
PDFN-8L(3x3)ROHS CompliantActive
MOSFET 30V 40A PDFN-8L(3x3)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRFHM9331TRPBF-TP
- Store part #
- C49452341
- Package / case
- PDFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,735 in stock
#C49452341
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.10 | ₹115.50 |
| 50+ | ₹18.27 | ₹913.50 |
| 150+ | ₹16.21 | ₹2,431.50 |
| 500+ | ₹13.63 | ₹6,815.00 |
| 2,500+ | ₹12.48 | ₹31,200.00 |
| 5,000+ | ₹11.79 | ₹58,950.00 |
5 × ₹23.10
₹115.50
excl. GST
₹136.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IRFHM9331TRPBF-TP
₹115.50 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 40A
- Output Capacitance(Coss)
- 350pF
- Ciss-Input Capacitance
- 2.7nF
- Pd - Power Dissipation
- 20W
- Reverse Transfer Capacitance (Crss)
- 265pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 42nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.245 g
Overview
Applications
- Reverse battery protection
- Load switch
- Power management
- PWM applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM3040PD8#C49452313TECH PUBLIC · PDFN-8L(3x3) | TECH PUBLIC | PDFN-8L(3x3) | 500 | ₹32.49 · 500 in stock | View |
 | TPM3040PD8-1#C49452314TECH PUBLIC · PDFN-8L(3x3) | TECH PUBLIC | PDFN-8L(3x3) | 500 | ₹32.49 · 500 in stock | View |
 | MDV3605URH-TP#C49452330TECH PUBLIC · PDFN-8L(3x3) | TECH PUBLIC | PDFN-8L(3x3) | 1,420 | ₹25.24 · 1,420 in stock | View |
 | DMP3036SFG-TP#C49452331TECH PUBLIC · PDFN-8L(3x3) | TECH PUBLIC | PDFN-8L(3x3) | 300 | ₹21.99 · 300 in stock | View |
 | AONR21321-TP#C49452335TECH PUBLIC · PDFN-8L(3x3) | TECH PUBLIC | PDFN-8L(3x3) | 4,260 | ₹17.57 · 4,260 in stock | View |
