InfineonDatasheet (PDF)

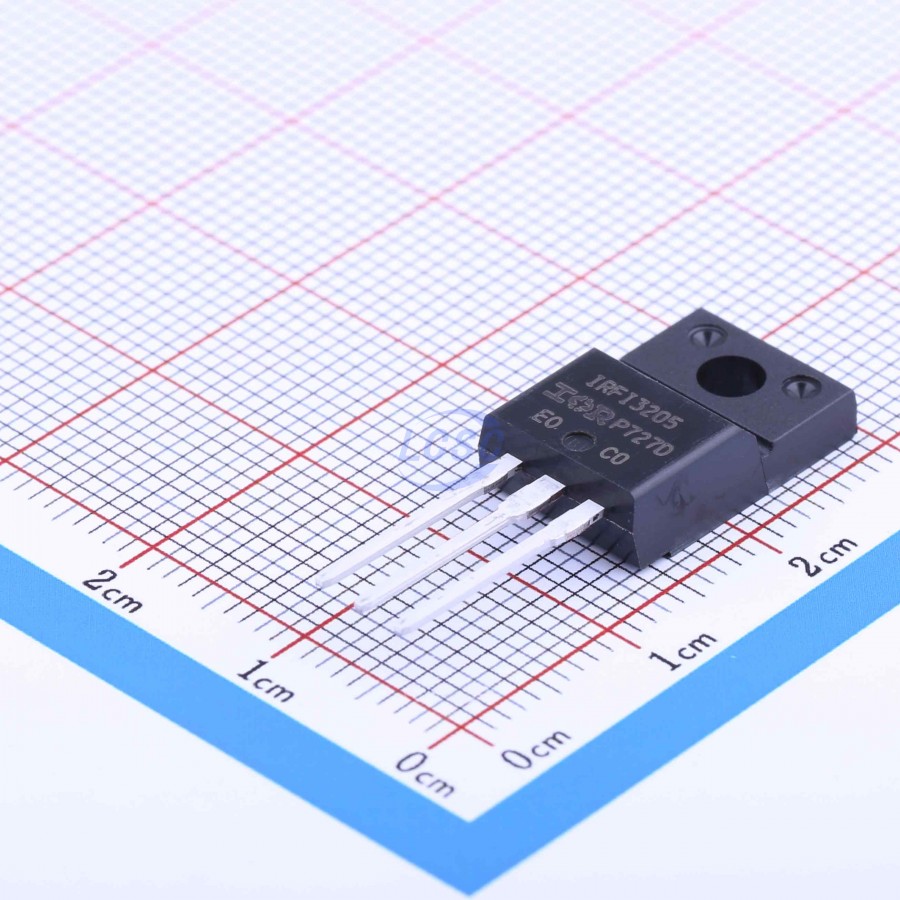

IRFI3205PBF
N-Channel 55V 64A 63W Through Hole TO-220F
TO-220FROHS3 CompliantActive
MOSFET N-CH 55V 64A TO-220F
- Manufacturer
- Infineon
- Manufacturer part #
- IRFI3205PBF
- Store part #
- C150931
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C150931
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹434.31 | ₹434.31 |
| 10+ | ₹368.65 | ₹3,686.50 |
| 50+ | ₹329.78 | ₹16,489.00 |
| 100+ | ₹290.50 | ₹29,050.00 |
| 500+ | ₹272.30 | ₹1,36,150.00 |
| 1,000+ | ₹264.11 | ₹2,64,110.00 |
1 × ₹434.31
₹434.31
excl. GST
₹512.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFI3205PBF
₹434.31 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.3nF
- Ciss-Input Capacitance
- 4nF
- Pd - Power Dissipation
- 63W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 64A
- Reverse Transfer Capacitance (Crss)
- 480pF
- RDS(on)
- 8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 170nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.64 g
Overview
Fifth Generation HEXFETs utilize advanced processing techniques to achieve extremely low onresistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 Fullpak eliminates the need for additional insulating hardware in commercial-industrial applications. The moulding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The Fullpak is mounted to a heatsink using a single clip or by a single screw fixing.
Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- Isolated Package High Voltage Isolation = 2.5KVRMS
- Sink to Lead Creepage Dist. = 4.8mm
- Fully Avalanche Rated Lead-Free
