InfineonDatasheet (PDF)

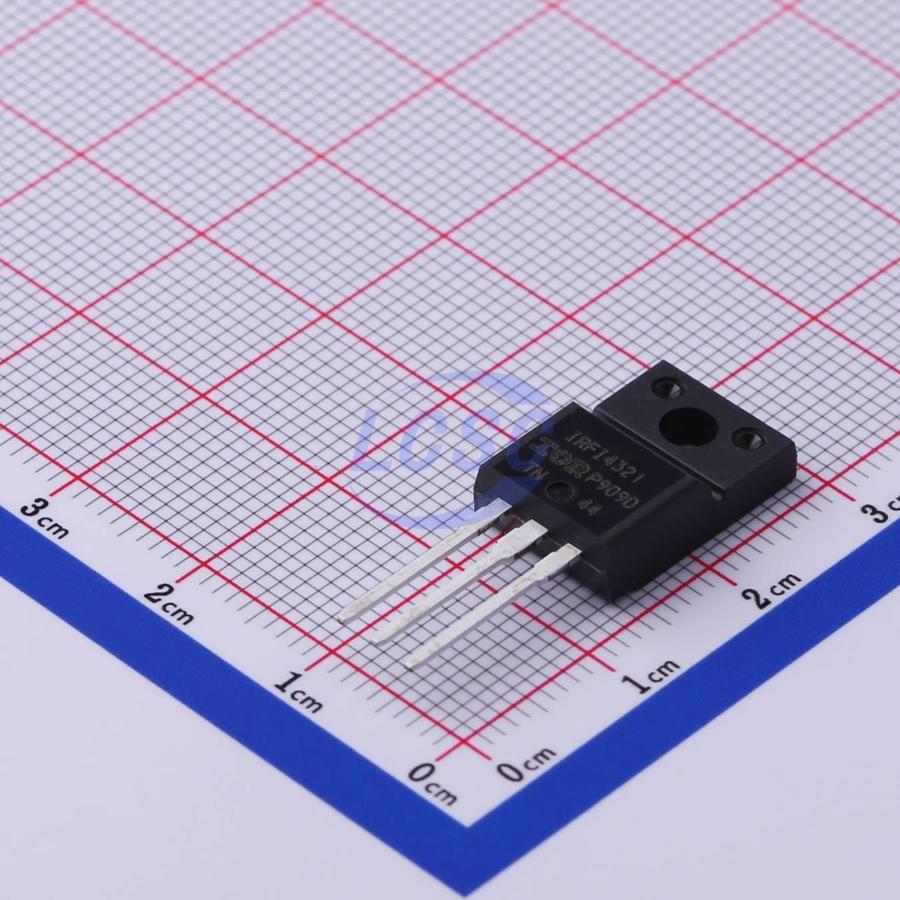

IRFI4321PBF
N-Channel 150V 34A 46W Through Hole TO-220F
TO-220FROHS3 CompliantActive
MOSFET N-CH 150V 34A TO-220F
- Manufacturer
- Infineon
- Manufacturer part #
- IRFI4321PBF
- Store part #
- C500533
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C500533
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹473.29 | ₹473.29 |
| 10+ | ₹414.22 | ₹4,142.20 |
| 50+ | ₹377.37 | ₹18,868.50 |
| 100+ | ₹339.44 | ₹33,944.00 |
| 500+ | ₹322.22 | ₹1,61,110.00 |
| 1,000+ | ₹314.81 | ₹3,14,810.00 |
1 × ₹473.29
₹473.29
excl. GST
₹558.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFI4321PBF
₹473.29 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 390pF
- Ciss-Input Capacitance
- 4.44nF
- Pd - Power Dissipation
- 46W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 34A
- Reverse Transfer Capacitance (Crss)
- 84pF
- RDS(on)
- 12.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.893 g
Overview
Applications
- Motion Control Applications
- High Efficiency Synchronous Rectification in SMPS
- Uninterruptible Power Supply
- Hard Switched and High Frequency Circuits
Key features
- Low RDSON Reduces Losses
- Low Gate Charge Improves the Switching Performance
- Improved Diode Recovery Improves Switching & EMI Performance
- 30V Gate Voltage Rating Improves Robustness Fully Characterized Avalanche SOA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STF45N65M5#C5268743ST · TO-220FP | ST | TO-220FP | 3 | ₹1,177.07 · 3 in stock | View |
| MMFT65R090RTH#C51902192MagnaChip Semicon · TO-220FT | MagnaChip Semicon | TO-220FT | 274 | ₹180.40 · 274 in stock | View | |
| SP13HF30TG#C54102151Siliup · TO-220F | Siliup | TO-220F | 200 | ₹775.08 · 200 in stock | View | |
 | IRFB4127PBF#C413498Infineon · ITO-220AB-3 | Infineon | ITO-220AB-3 | 1,749 | ₹255.67 · 1,749 in stock | View |
 | AGM15T06F#C7431165AGMSEMI · TO-220F | AGMSEMI | TO-220F | 7 | ₹273.37 · 7 in stock | View |
