VISHAYDatasheet (PDF)

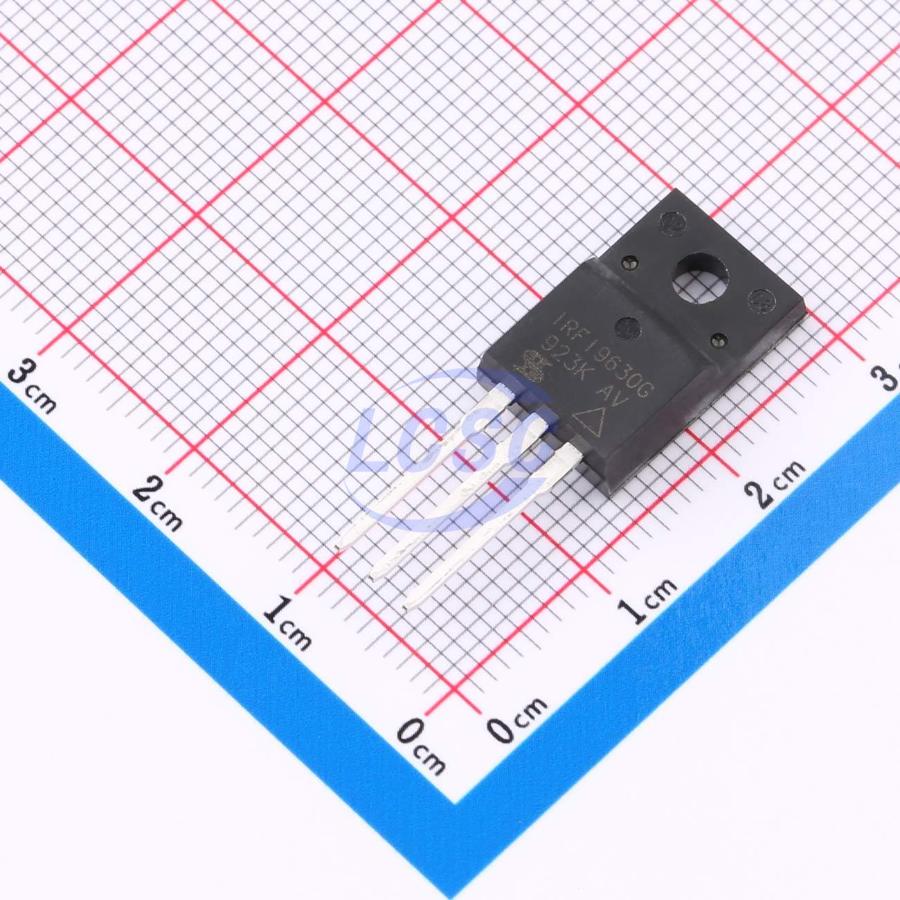

IRFI9630GPBF
200V 2.7A 35W 800mΩ@10V 1 P-Channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS3 CompliantActive
MOSFET P-CH 200V 2.7A TO-220-3
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFI9630GPBF
- Store part #
- C7211050
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7211050
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹416.78 | ₹416.78 |
| 10+ | ₹359.63 | ₹3,596.30 |
| 30+ | ₹323.78 | ₹9,713.40 |
| 100+ | ₹248.38 | ₹24,838.00 |
| 500+ | ₹231.86 | ₹1,15,930.00 |
| 1,000+ | ₹224.69 | ₹2,24,690.00 |
1 × ₹416.78
₹416.78
excl. GST
₹491.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per tube
IRFI9630GPBF
₹416.78 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 2.7A
- Ciss-Input Capacitance
- 700pF
- Pd - Power Dissipation
- 35W
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 800mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 29nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,000 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.758 g
Overview
The third-generation power MOSFETs offer designers an optimum combination of fast switching, rugged device design, low on-resistance, and cost-effectiveness. The TO-220 FULLPAK package eliminates the need for additional insulating hardware in commercial-industrial applications. The molding compound used provides high isolation capability with low thermal resistance between the heatsink tab and external heatsink. This isolation is equivalent to using a 100-micron mica barrier in a standard TO-220 product. The FULLPAK package can be mounted to a heatsink using a single clip or a single screw.
Applications
- PFC stage - hard-switching PWM stage - resonant switching stage, e.g. for PC power supplies, adapters, LCD and PDP TVs, lighting, servers, telecom, and UPS
Key features
- Isolated package
- High-voltage isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Heatsink-to-pin creepage distance = 4.8 mm
- P-channel
- Dynamic dV/dt rating
- Low thermal resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF9630PBF#C2627VISHAY · TO-220AB | VISHAY | TO-220AB | 6,388 | ₹74.01 · 6,388 in stock | View |
 | VBM2202K#C7541177VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 165 | ₹107.14 · 165 in stock | View |
 | IRF9610PBF-VB#C52989015VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 4 | ₹111.03 · 4 in stock | View |
 | IXTP10P50P#C5359029Littelfuse/IXYS · TO-220-3 | Littelfuse/IXYS | TO-220-3 | 506 | ₹951.37 · 506 in stock | View |
 | HSP10P20#C42376815HUASHUO · TO-220 | HUASHUO | TO-220 | 630 | ₹74.15 · 630 in stock | View |
