VBsemi ElecDatasheet (PDF)

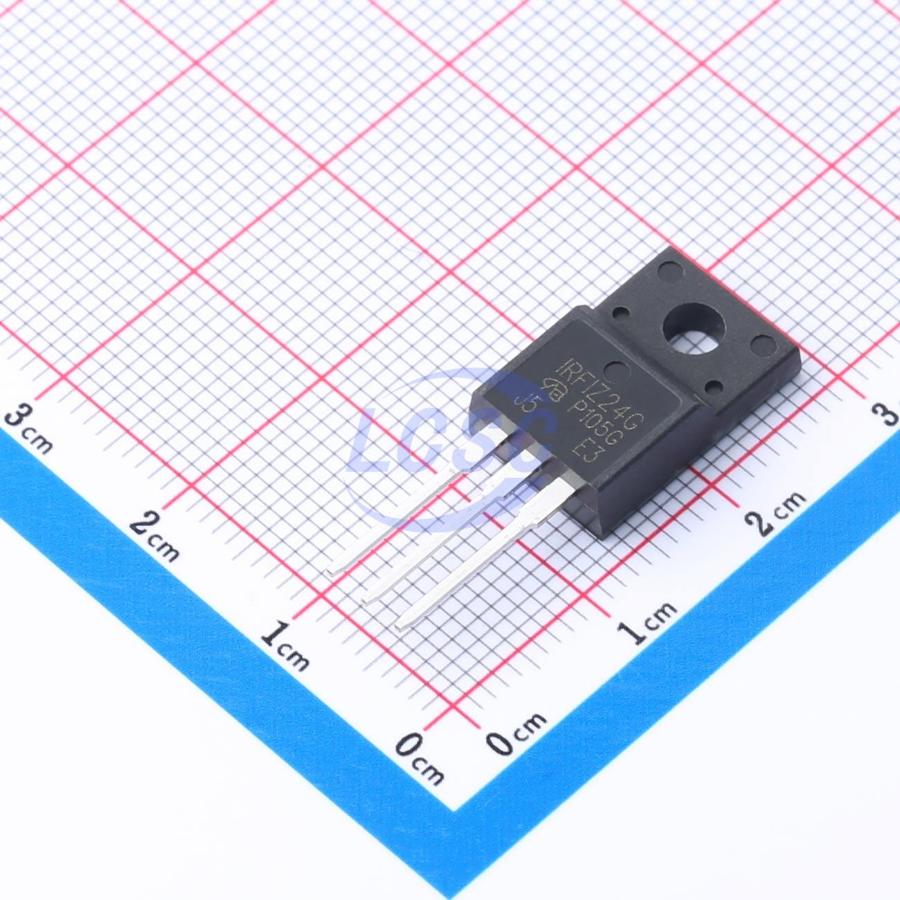

IRFIZ24GPBF-VB
N-Channel 60V 30A 52W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 60V 30A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFIZ24GPBF-VB
- Store part #
- C5444631
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C5444631
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.33 | ₹78.33 |
| 10+ | ₹63.68 | ₹636.80 |
| 50+ | ₹56.35 | ₹2,817.50 |
| 100+ | ₹49.23 | ₹4,923.00 |
| 500+ | ₹44.82 | ₹22,410.00 |
| 1,000+ | ₹42.52 | ₹42,520.00 |
1 × ₹78.33
₹78.33
excl. GST
₹92.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFIZ24GPBF-VB
₹78.33 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 720pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 52W
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 27mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 95nC@10V
- Vgs
- 20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.748 g
Overview
WSD100N15DN56G is a high-performance trench N-channel MOSFET with ultra-high cell density, delivering excellent on-resistance (R<sub>DS(ON)</sub>) and gate charge for most synchronous buck converter applications. WSD100N15DN56 is RoHS and green product compliant, 100% tested for avalanche energy (E<sub>AS</sub>), and fully reliability-qualified.
Applications
- High-frequency point-of-load synchronous buck converter
- Networking DC-DC power systems
Key features
- Isolated Package
- High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Sink to Lead Creepage Distance = 4.8 mm
- 175 °C Operating Temperature
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK30A06J3-VB#C693222VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 6 | ₹71.06 · 6 in stock | View |
 | IRLIZ34NPBF-VB#C7429054VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | On request | ₹81.05 · 0 in stock | View |
 | IRLIZ14GPBF-VB#C7525079VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 12 | ₹79.49 · 12 in stock | View |
 | IRLIZ44NPBF-VB#C19188115VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 4 | ₹79.49 · 4 in stock | View |
 | 2SK2986-VB#C19626779VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 50 | ₹86.92 · 50 in stock | View |
