MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
TECH PUBLICDatasheet (PDF)

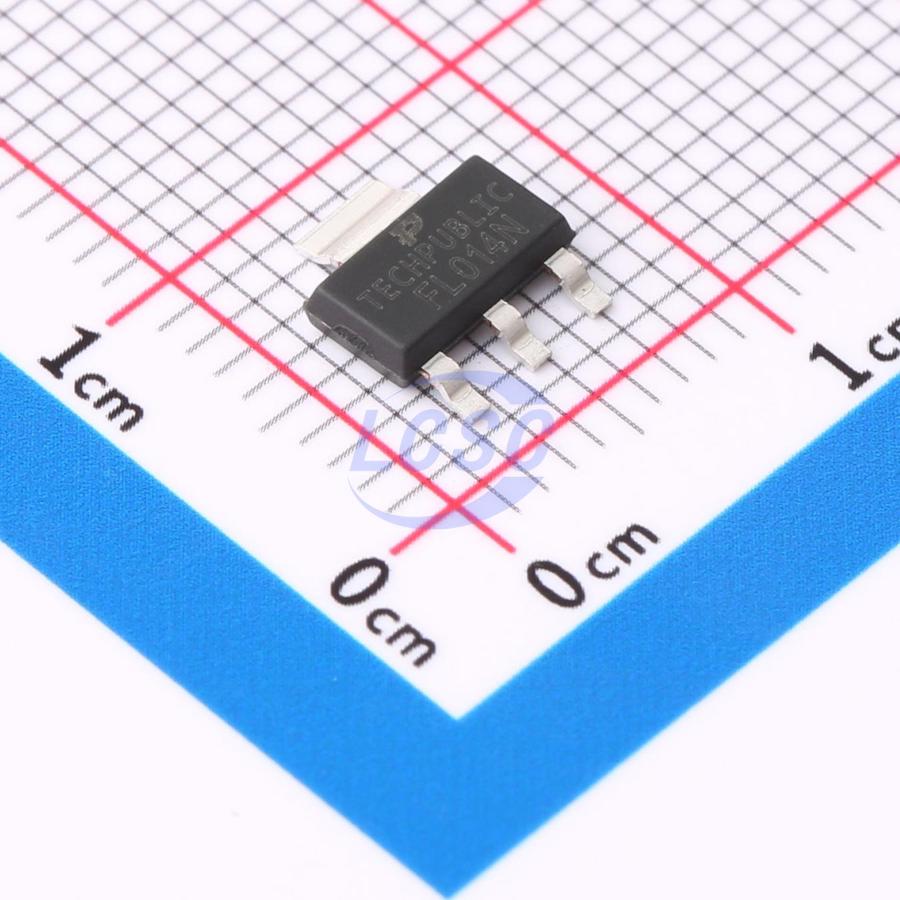

IRFL014NTRPBF
60V 4A 3W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET 60V 4A SOT-223
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRFL014NTRPBF
- Store part #
- C7472940
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,095 in stock
#C7472940
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.69 | ₹178.45 |
| 50+ | ₹28.03 | ₹1,401.50 |
| 150+ | ₹24.75 | ₹3,712.50 |
| 500+ | ₹20.65 | ₹10,325.00 |
| 2,500+ | ₹18.83 | ₹47,075.00 |
| 5,000+ | ₹17.73 | ₹88,650.00 |
5 × ₹35.69
₹178.45
excl. GST
₹210.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFL014NTRPBF
₹178.45 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 70pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 530pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 100mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.232 g
Overview
Applications
- Load/Power Switch - Interface Switch - Logic Level Translation
Key features
- 60V, 4A, R DS(ON) = 85 mΩ at VGS = 10V
- RDS(ON) = 100 mΩ at VGS = 4.5V
- High-density cell design for ultra-low RDS(ON)
- Robust and reliable
- Lead-free
- SOT-223 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLL014NTRPBF-TP#C41407976TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,565 | ₹36.01 · 2,565 in stock | View |
 | NTF3055L108T1G#C7472933TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 5,335 | ₹37.80 · 5,335 in stock | View |
 | STN3NF06L#C7472935TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 1,820 | ₹31.65 · 1,820 in stock | View |
 | TPM604NY3-1#C7472937TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 390 | ₹16.59 · 390 in stock | View |
 | TPM604NY3-2#C7472938TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 540 | ₹16.59 · 540 in stock | View |
