VISHAYDatasheet (PDF)

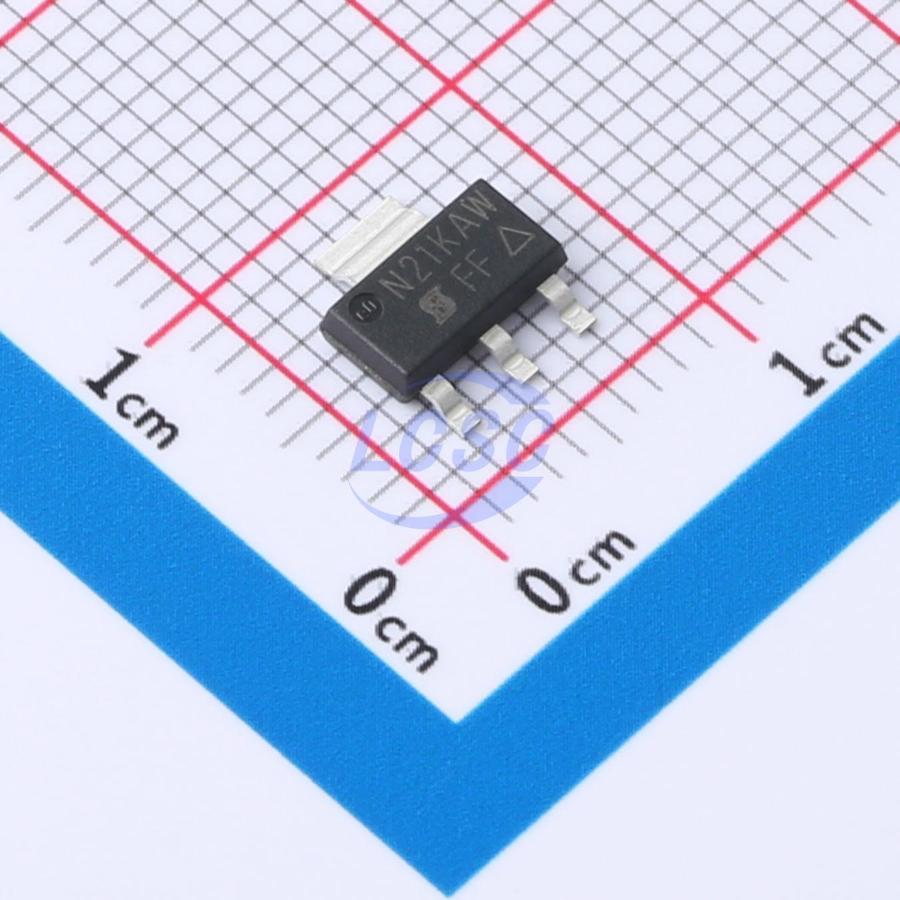

IRFL9110TRPBF
P-Channel 100V 0.69A 3.1W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET P-CH 100V 0.69A SOT-223
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFL9110TRPBF
- Store part #
- C727523
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,139 in stock
#C727523
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.04 | ₹116.04 |
| 10+ | ₹92.31 | ₹923.10 |
| 30+ | ₹80.56 | ₹2,416.80 |
| 100+ | ₹68.80 | ₹6,880.00 |
| 500+ | ₹61.84 | ₹30,920.00 |
| 1,000+ | ₹58.13 | ₹58,130.00 |
1 × ₹116.04
₹116.04
excl. GST
₹136.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFL9110TRPBF
₹116.04 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 94pF
- Ciss-Input Capacitance
- 200pF
- Pd - Power Dissipation
- 3.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 690mA
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 1.2Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8.7nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOT-223 package is designed for surface-mount using vapor phase, infrared, or wave soldering techniques. Its unique package design allows for easy automatic pick-and-place as with other SOT or SOIC packages but has the added advantage of improved thermal performance due to an enlarged tab for heatsinking. Power dissipation of greater than 1.25 W is possible in a typical surface mount application.
Key features
- Surface mount
- Available in tape and reel
- Dynamic dV/dt rating
- Repetitive avalanche rated
- P-channel
- Fast switching Avai
- Ease of paralleling
