VISHAYDatasheet (PDF)

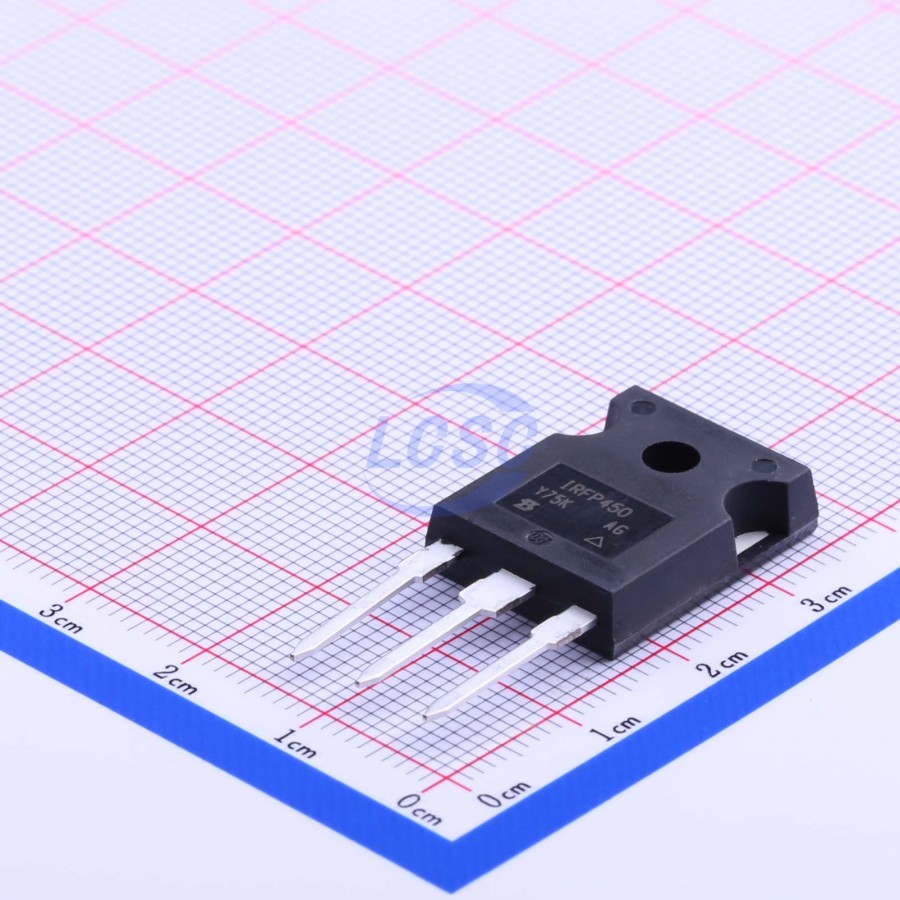

IRFP450PBF
N-Channel 500V 8.7A 190W Through Hole TO-247AC-3
TO-247AC-3ROHS3 CompliantActive
MOSFET N-CH 500V 8.7A TO-247AC-3
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFP450PBF
- Store part #
- C2683
- Package / case
- TO-247AC-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,004 in stock
#C2683
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹219.01 | ₹219.01 |
| 10+ | ₹185.02 | ₹1,850.20 |
| 25+ | ₹158.12 | ₹3,953.00 |
| 100+ | ₹136.40 | ₹13,640.00 |
| 500+ | ₹126.51 | ₹63,255.00 |
| 1,000+ | ₹122.21 | ₹1,22,210.00 |
1 × ₹219.01
₹219.01
excl. GST
₹258.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IRFP450PBF
₹219.01 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 720pF
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 190W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 8.7A
- Reverse Transfer Capacitance (Crss)
- 340pF
- RDS(on)
- 400mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 150nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.72 g
Overview
The third-generation power MOSFETs offer designers the best combination of fast switching, rugged device design, low on-resistance, and cost-effectiveness. For commercial-industrial applications with higher power requirements where TO-220 devices are not suitable, the TO-247 package is the preferred choice. The TO-247 is similar to the earlier TO-218 package but superior, as it features an isolated mounting hole. It also provides greater creepage distance between leads to meet the requirements of most safety regulations.
Key features
- Dynamic dv/dt rating
- Repetitive avalanche rated
- Central insulated mounting hole
- Fast switching
- Easy to parallel
- Simple drive requirements
- Lead-free products available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HIRFP450PBF#C42401333HXY MOSFET · TO-247S | HXY MOSFET | TO-247S | 41 | ₹200.49 · 41 in stock | View |
 | HIRFP450APBF#C42401082HXY MOSFET · TO-247S | HXY MOSFET | TO-247S | 16 | ₹263.65 · 16 in stock | View |
 | IRFP450-HXY#C7469135HXY MOSFET · TO-247 | HXY MOSFET | TO-247 | 405 | ₹201.24 · 405 in stock | View |
 | IRFPC50PBF#C2892051VISHAY · TO-247AC | VISHAY | TO-247AC | 62 | ₹406.82 · 62 in stock | View |
 | IRFP450LCPBF#C2684Infineon · TO-247AC-3 | Infineon | TO-247AC-3 | 1 | ₹916.07 · 1 in stock | View |
