VISHAYDatasheet (PDF)

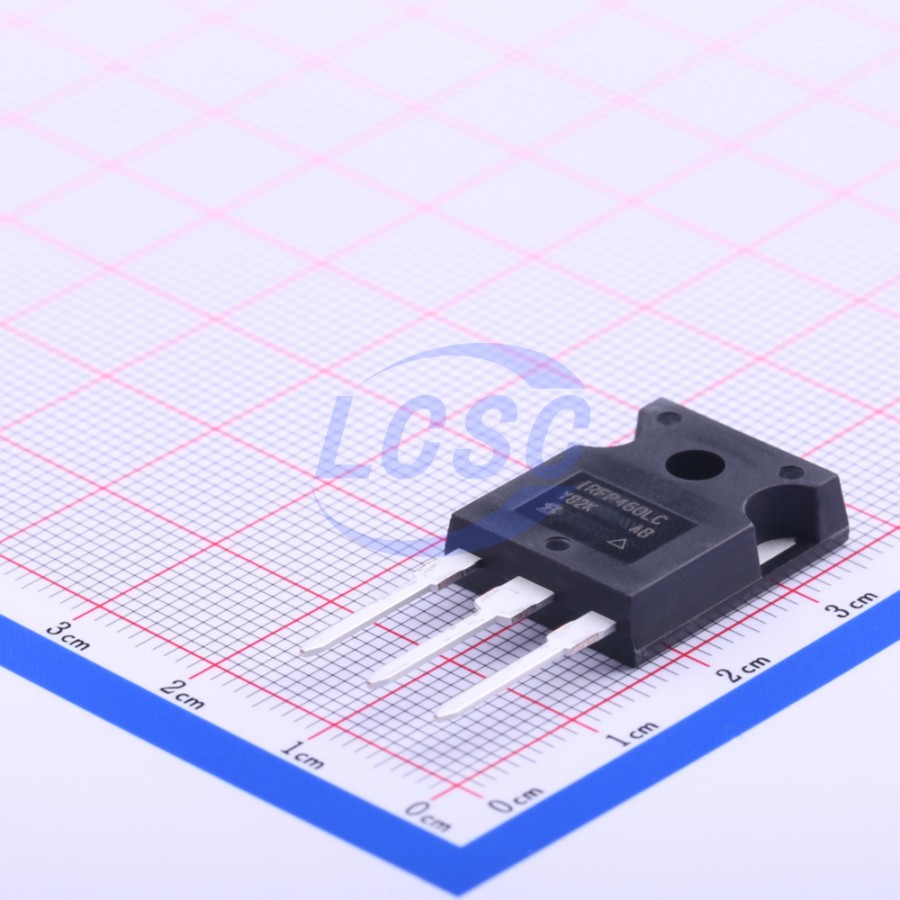

IRFP460LCPBF
N-Channel 500V 20A 3.5W Through Hole TO-247AC-3
TO-247AC-3ROHS3 CompliantActive
MOSFET N-CH 500V 20A TO-247AC-3
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFP460LCPBF
- Store part #
- C212024
- Package / case
- TO-247AC-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,714 in stock
#C212024
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹435.70 | ₹435.70 |
| 10+ | ₹371.10 | ₹3,711.00 |
| 25+ | ₹304.54 | ₹7,613.50 |
| 100+ | ₹265.61 | ₹26,561.00 |
| 500+ | ₹247.77 | ₹1,23,885.00 |
| 1,000+ | ₹239.71 | ₹2,39,710.00 |
1 × ₹435.70
₹435.70
excl. GST
₹514.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IRFP460LCPBF
₹435.70 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.6nF
- Ciss-Input Capacitance
- 440pF
- Pd - Power Dissipation
- 3.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 39pF
- RDS(on)
- 270mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.076 g
Overview
This new series of low charge Power MOSFETs achieve significantly lower gate charge over conventional MOSFETs. Utilizing advanced Power MOSFETs technology the device improvements allow for reduced gate drive requirements, faster switching speeds and increased total system savings. These device improvements combined with the proven ruggedness and reliabiltity of Power MOSFETs offer the designer a new standard in power transistors for switching applications. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because its isolated mounting hole.
Key features
- Ultra Low Gate Charge
- Reduced Gate Drive Requirement
- Enhanced 30 VGS Rating
- Reduced Ciss, Coss, Crss
- Isolated Central Mounting Hole
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Lead (Pb)-free Available
