VBsemi ElecDatasheet (PDF)

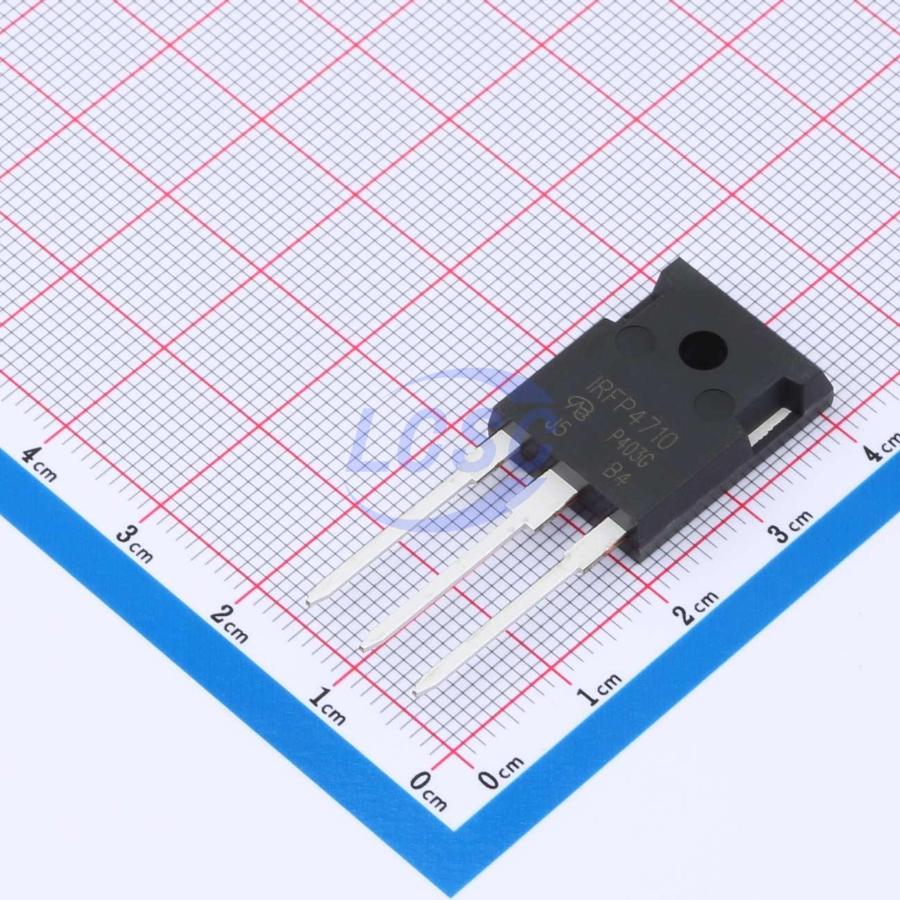

IRFP4710PBF-VB
N-Channel 100V 72A 355W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 100V 72A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFP4710PBF-VB
- Store part #
- C20755418
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C20755418
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹393.38 | ₹393.38 |
| 10+ | ₹345.26 | ₹3,452.60 |
| 30+ | ₹251.01 | ₹7,530.30 |
| 90+ | ₹220.09 | ₹19,808.10 |
| 510+ | ₹206.16 | ₹1,05,141.60 |
| 990+ | ₹200.06 | ₹1,98,059.40 |
1 × ₹393.38
₹393.38
excl. GST
₹464.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IRFP4710PBF-VB
₹393.38 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 410pF
- Current - Continuous Drain(Id)
- 72A
- Ciss-Input Capacitance
- 3.2nF
- Pd - Power Dissipation
- 355W
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 90nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 11.5 g
Overview
Applications
- Isolated DC/DC Converter
Key features
- Trench power MOSFET
- Junction temperature 175°C
- Low thermal resistance package
- 100% gate resistance (Rg) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STH60N10-VB#C22389762VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 23 | ₹361.38 · 23 in stock | View |
 | IXFH75N10-VB#C22389670VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 1 | ₹302.48 · 1 in stock | View |
 | IRFP150NPBF-VB#C55251732VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹166.17 · 5 in stock | View |
 | IXFH140N10P-VB#C19626844VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 54 | ₹414.92 · 54 in stock | View |
 | IXFR200N10P-VB#C29778852VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹399.32 · 5 in stock | View |
