VISHAYDatasheet (PDF)

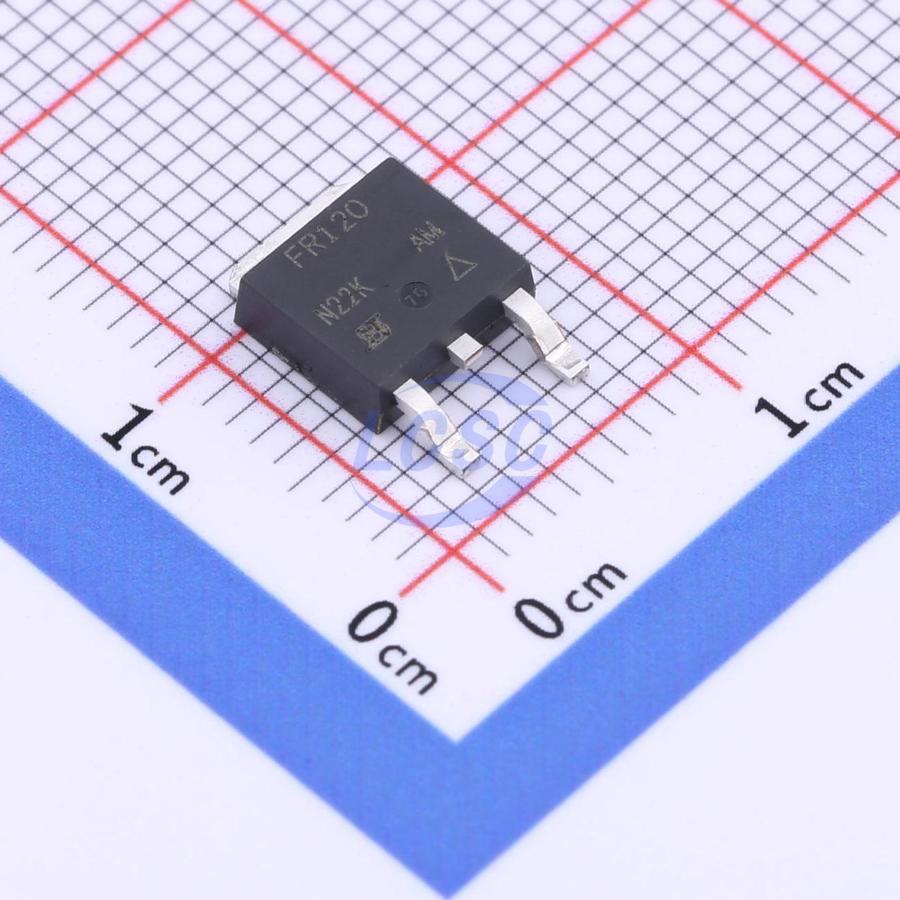

IRFR120TRPBF
N-Channel 100V 7.7A 42W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET N-CH 100V 7.7A DPAK(TO-252)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFR120TRPBF
- Store part #
- C727632
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,183 in stock
#C727632
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹180.76 | ₹180.76 |
| 10+ | ₹152.21 | ₹1,522.10 |
| 30+ | ₹136.53 | ₹4,095.90 |
| 100+ | ₹118.73 | ₹11,873.00 |
| 500+ | ₹85.45 | ₹42,725.00 |
| 1,000+ | ₹81.80 | ₹81,800.00 |
1 × ₹180.76
₹180.76
excl. GST
₹213.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFR120TRPBF
₹180.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 150pF
- Ciss-Input Capacitance
- 360pF
- Pd - Power Dissipation
- 42W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 7.7A
- Reverse Transfer Capacitance (Crss)
- 34pF
- RDS(on)
- 270mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.53 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- RoHS COMPLIANT HALOGEN FREE Available
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Surface Mount (IRFR120, SiHFR120)
- Straight Lead (IRFU120, SiHFU120)
- Available in Tape and Reel
- Fast Switching
- Ease of Paralleling
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR120PBF#C727631VISHAY · DPAK(TO-252) | VISHAY | DPAK(TO-252) | 3,780 | ₹64.96 · 3,780 in stock | View |
 | TPM10015NK3#C5350890TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 330 | ₹18.11 · 330 in stock | View |
 | FQD13N10LTM#C37552onsemi · DPAK | onsemi | DPAK | 9,377 | ₹61.15 · 9,377 in stock | View |
 | H15N10D#C49435646Huixin · TO-252 | Huixin | TO-252 | 2,490 | ₹44.24 · 2,490 in stock | View |
 | NCE0208KA#C502830NCE · TO-252-2L | NCE | TO-252-2L | 2,385 | ₹67.34 · 2,385 in stock | View |
