VBsemi ElecDatasheet (PDF)

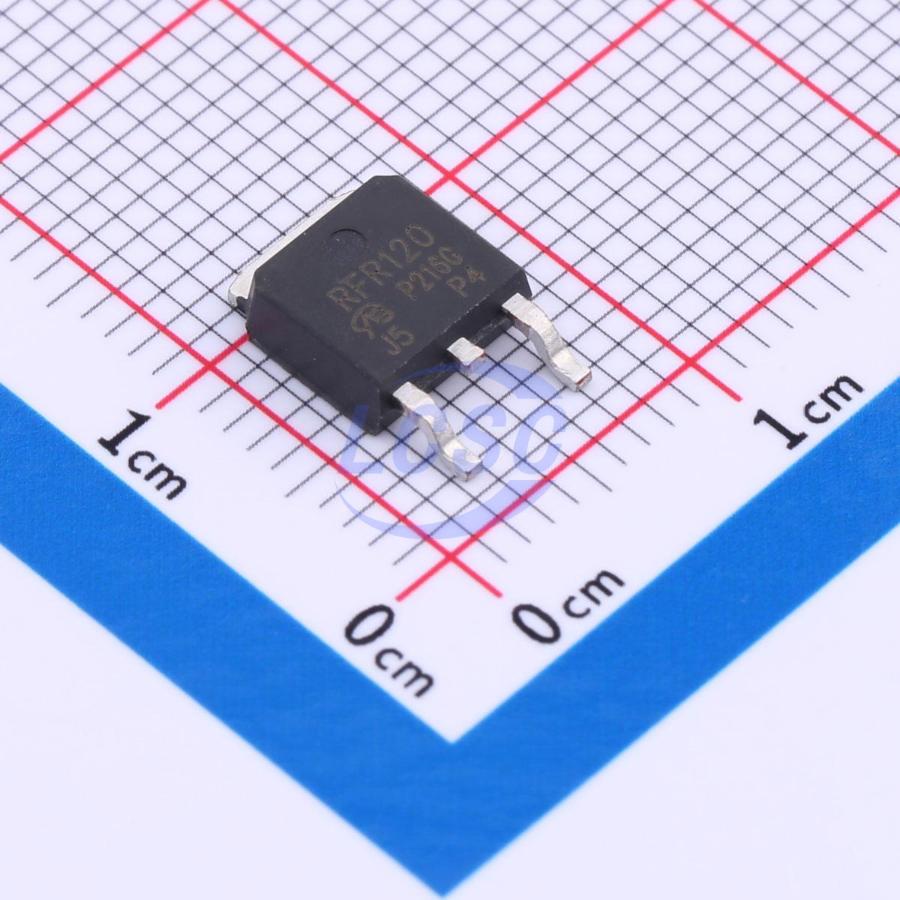

IRFR120TRPBF-VB
N-Channel 100V 15A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 15A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFR120TRPBF-VB
- Store part #
- C5137435
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5137435
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.75 | ₹69.75 |
| 10+ | ₹55.67 | ₹556.70 |
| 30+ | ₹49.57 | ₹1,487.10 |
| 100+ | ₹42.02 | ₹4,202.00 |
| 500+ | ₹36.98 | ₹18,490.00 |
| 1,000+ | ₹35.09 | ₹35,090.00 |
1 × ₹69.75
₹69.75
excl. GST
₹82.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR120TRPBF-VB
₹69.75 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 114mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 41nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- 150°C junction temperature
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD110N12N3G-VB#C18212573VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹130.06 · 50 in stock | View |
 | AOD474-VB#C20417491VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹68.28 · 50 in stock | View |
 | FS5AS-2-VB#C22389509VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹65.75 · 20 in stock | View |
 | 09T10GH-HF-VB#C29778743VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹65.75 · 10 in stock | View |
 | K654-Z-E1-VB#C29779810VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹65.75 · 20 in stock | View |
