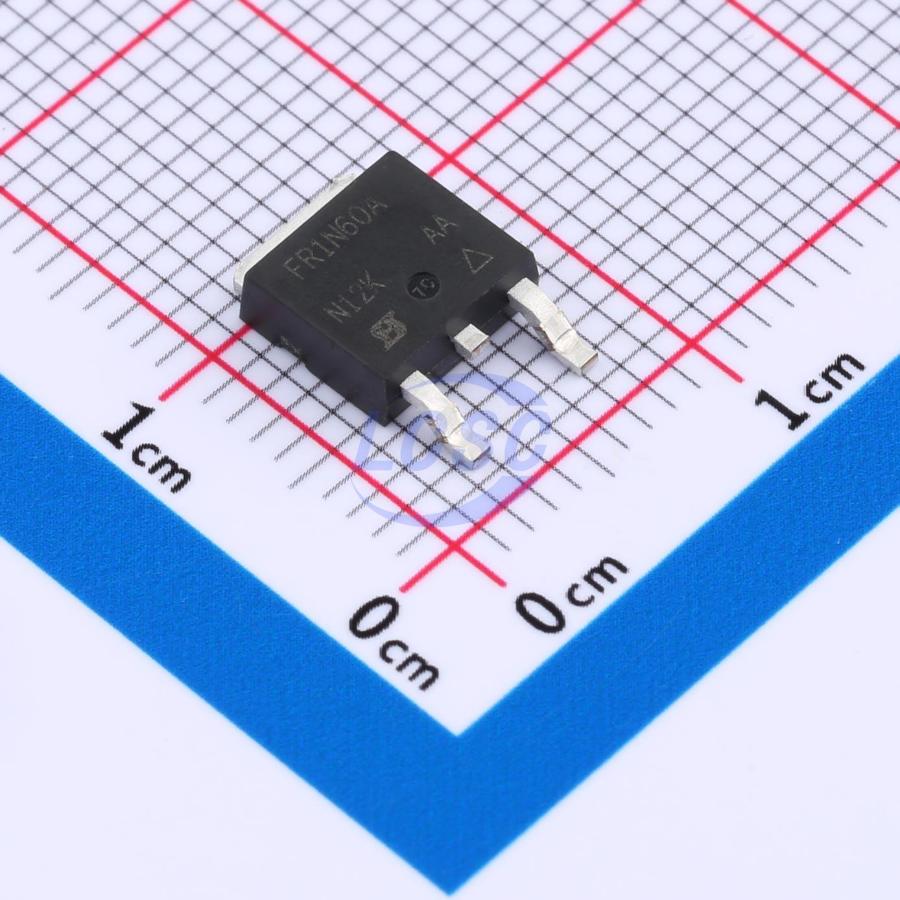

IRFR1N60APBF
N-Channel 600V 1.4A 36W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET N-CH 600V 1.4A DPAK(TO-252)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFR1N60APBF
- Store part #
- C727794
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56 in stock
#C727794
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹229.22 | ₹229.22 |
| 10+ | ₹195.88 | ₹1,958.80 |
| 30+ | ₹175.05 | ₹5,251.50 |
| 75+ | ₹153.57 | ₹11,517.75 |
| 525+ | ₹144.00 | ₹75,600.00 |
| 975+ | ₹139.83 | ₹1,36,334.25 |
1 × ₹229.22
₹229.22
excl. GST
₹270.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
IRFR1N60APBF
₹229.22 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 32.6pF
- Ciss-Input Capacitance
- 229pF
- Pd - Power Dissipation
- 36W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 1.4A
- Reverse Transfer Capacitance (Crss)
- 2.4pF
- RDS(on)
- 7Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.67 g
Overview
Applications
- Switch Mode Power Supply (SMPS)
- Uninterruptible Power Supply
- Power Factor Correction
Key features
- Low Gate ChargeQg Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- RoHS COMPLIANT HALOGEN FREE Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR1N60ATRPBF#C727796VISHAY · DPAK | VISHAY | DPAK | 5 | ₹125.90 · 5 in stock | View |
 | BRD2N65#C7429791BLUE ROCKET · TO-252 | BLUE ROCKET | TO-252 | 2,420 | ₹20.89 · 2,420 in stock | View |
 | FQD2N100TM#C5250728Tokmas · TO-252 | Tokmas | TO-252 | 2,640 | ₹83.92 · 2,640 in stock | View |
 | CMD65R900Q#C5337976Cmos · TO-252 | Cmos | TO-252 | 140 | ₹39.23 · 140 in stock | View |
| 2SK2059-VB#C54176941VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹77.73 · 5 in stock | View | |
