VBsemi ElecDatasheet (PDF)

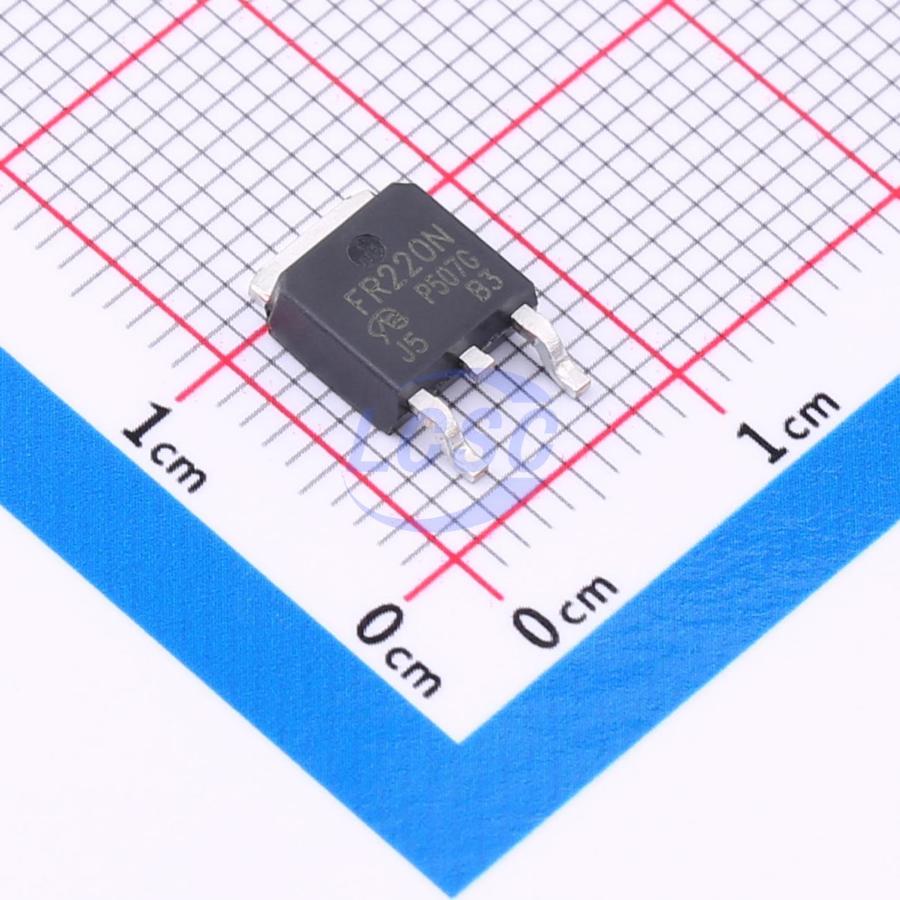

IRFR220NTRLPBF-VB
N-Channel 200V 10A 96W Surface Mount TO-252
TO-252Active
MOSFET N-CH 200V 10A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFR220NTRLPBF-VB
- Store part #
- C45662563
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C45662563
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.46 | ₹106.46 |
| 10+ | ₹88.39 | ₹883.90 |
| 30+ | ₹79.46 | ₹2,383.80 |
| 100+ | ₹70.54 | ₹7,054.00 |
| 500+ | ₹54.86 | ₹27,430.00 |
| 1,000+ | ₹52.03 | ₹52,030.00 |
1 × ₹106.46
₹106.46
excl. GST
₹125.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR220NTRLPBF-VB
₹106.46 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 245mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 51nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.62 g
Overview
Applications
- Primary Side Switch
Key features
- Trench Power MOSFET
- 175 °C Junction Temperature
- PWM Optimized
- 100 % Rg Tested
- Compliant to RoHS Directive 2002/95/EC
