VISHAYDatasheet (PDF)

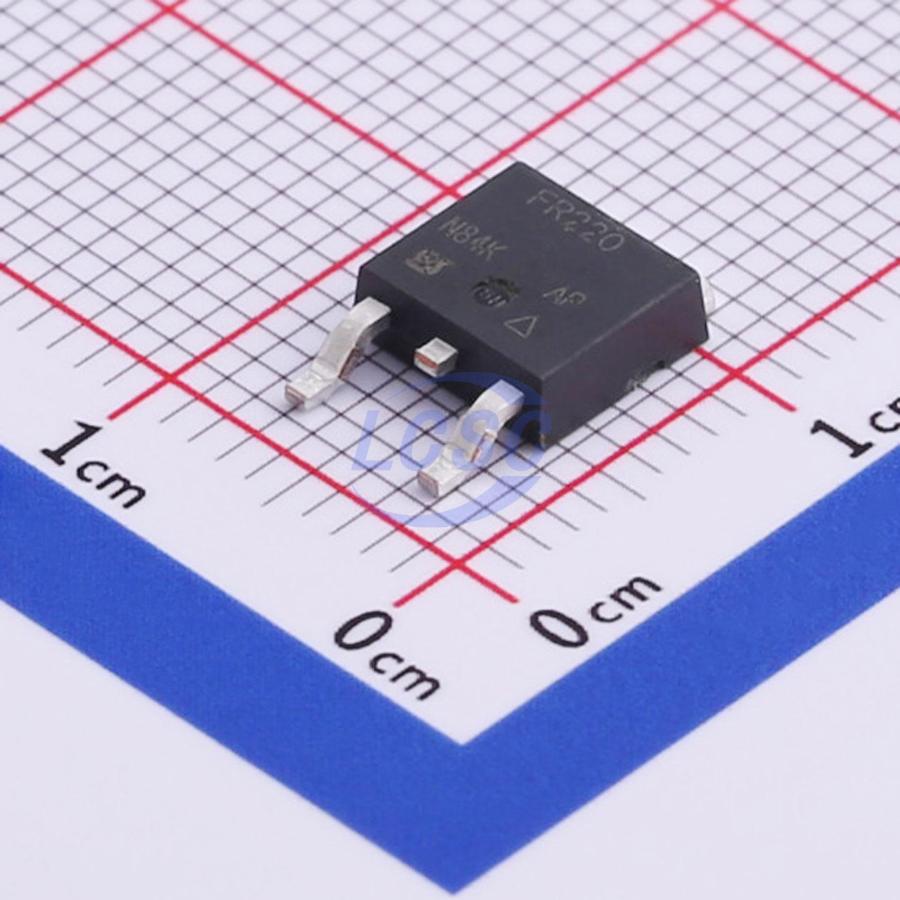

IRFR220TRPBF
N-Channel 200V 3A 42W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET N-CH 200V 3A DPAK(TO-252)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFR220TRPBF
- Store part #
- C506577
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,688 in stock
#C506577
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.11 | ₹78.11 |
| 10+ | ₹62.27 | ₹622.70 |
| 30+ | ₹54.24 | ₹1,627.20 |
| 100+ | ₹46.44 | ₹4,644.00 |
| 500+ | ₹41.66 | ₹20,830.00 |
| 1,000+ | ₹39.28 | ₹39,280.00 |
1 × ₹78.11
₹78.11
excl. GST
₹92.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFR220TRPBF
₹78.11 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 100pF
- Ciss-Input Capacitance
- 260pF
- Pd - Power Dissipation
- 42W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 800mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.391 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- Dynamic dV/dt rating
- Repetitive avalanche rated
- RoHS COMPLIANT
- Surface mount (IRFR220, SiHFR220)
- Straight lead (IRFU220, SiHFU220)
- HALOGEN FREE
- Available in tape and reel
- Fast switching
- Ease of paralleling
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR220PBF#C511009VISHAY · DPAK(TO-252) | VISHAY | DPAK(TO-252) | 6 | ₹181.20 · 6 in stock | View |
 | FDD6N20TF-VB#C29778967VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹58.19 · 20 in stock | View |
 | VBE1203M#C480948VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹112.55 · 20 in stock | View |
 | FQD5N20LTM-VB#C19188184VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 93 | ₹61.55 · 93 in stock | View |
 | FDD6N20TM-VB#C19190141VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 13 | ₹60.71 · 13 in stock | View |
