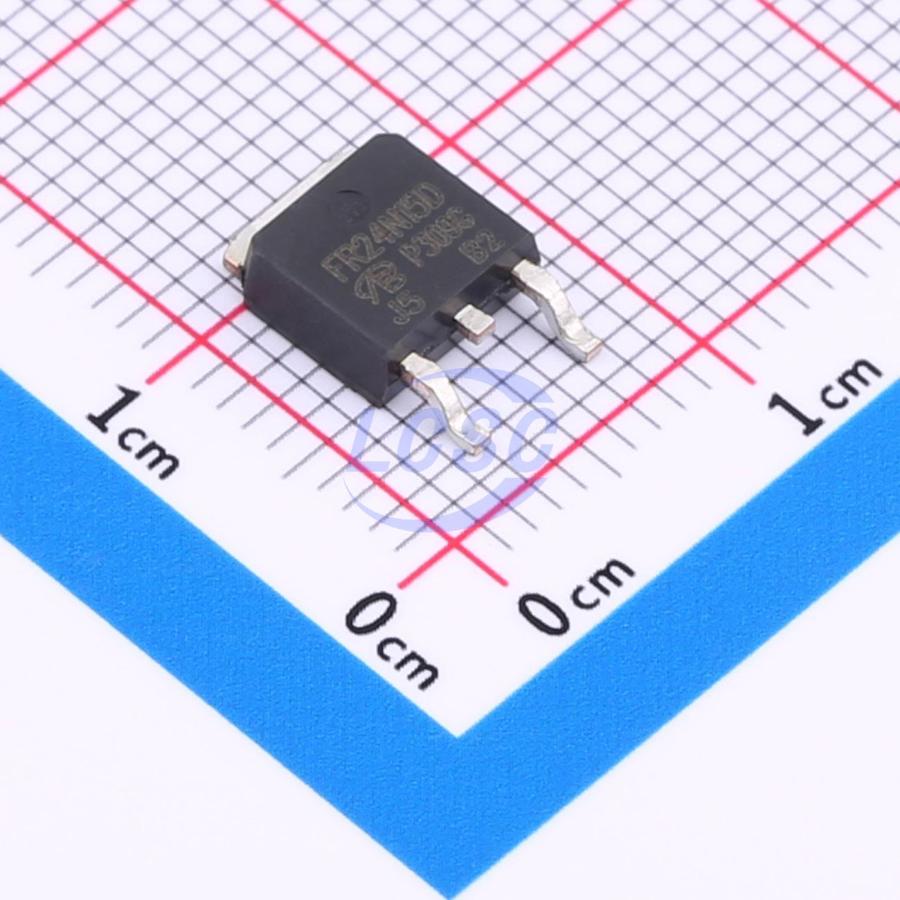

IRFR24N15DTRPBF-VB
N-Channel 150V 25.4A 5.9W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 150V 25.4A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFR24N15DTRPBF-VB
- Store part #
- C20417548
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C20417548
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.99 | ₹99.99 |
| 10+ | ₹81.30 | ₹813.00 |
| 30+ | ₹71.84 | ₹2,155.20 |
| 100+ | ₹62.60 | ₹6,260.00 |
| 500+ | ₹57.14 | ₹28,570.00 |
| 1,000+ | ₹54.20 | ₹54,200.00 |
1 × ₹99.99
₹99.99
excl. GST
₹117.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR24N15DTRPBF-VB
₹99.99 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 160pF
- Current - Continuous Drain(Id)
- 25.4A
- Ciss-Input Capacitance
- 1.735nF
- Pd - Power Dissipation
- 5.9W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 77mΩ@8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.44 g
Overview
Applications
- Primary-side switch
Key features
- Halogen-free per IEC 61249-2-21
- Ultra-low Qgd for reduced switching losses
- 100% Rg tested
- 100% avalanche tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FR18N15D-VB#C19626700VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹101.16 · 15 in stock | View |
 | AM20N15-250D-T1-PF-VB#C19711369VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 254 | ₹103.01 · 254 in stock | View |
 | FR13N15D-VB#C20417600VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹96.00 · 20 in stock | View |
 | FDD2582-VB#C3040297VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹101.16 · 8 in stock | View |
 | FDD2572-VB#C878975VBsemi Elec · TO-252-2 | VBsemi Elec | TO-252-2 | 10 | ₹99.78 · 10 in stock | View |
