VISHAYDatasheet (PDF)

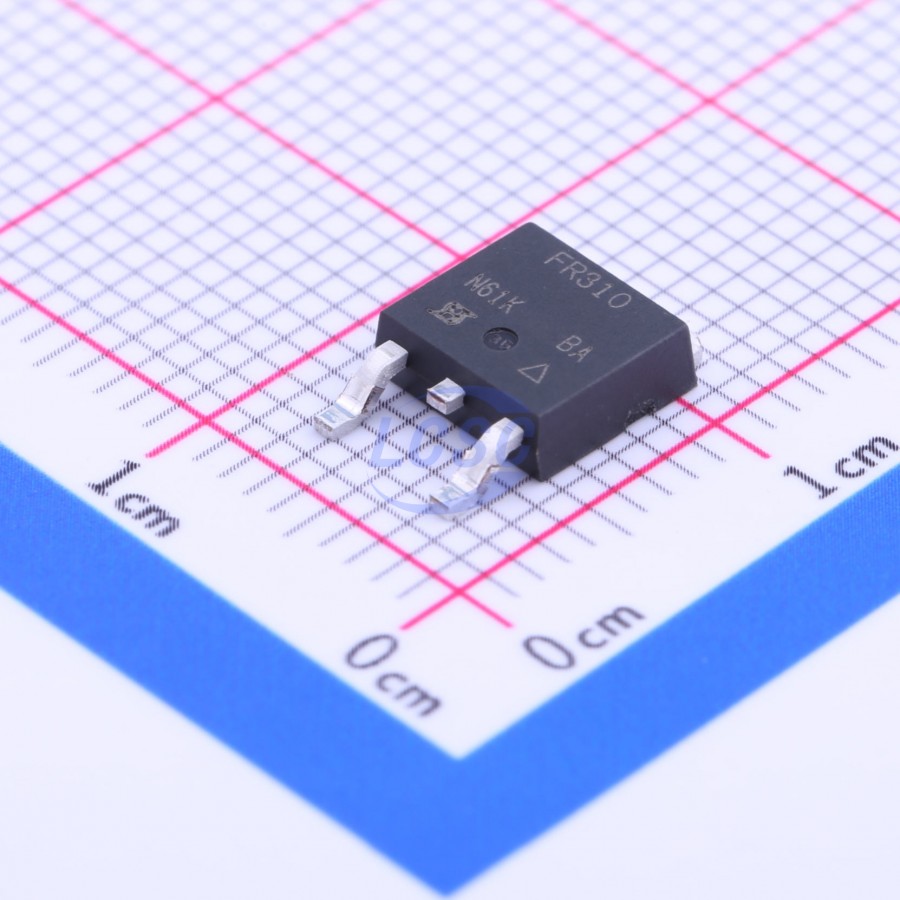

IRFR310TRPBF
N-Channel 400V 1.7A 25W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS CompliantActive
MOSFET N-CH 400V 1.7A DPAK(TO-252)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFR310TRPBF
- Store part #
- C144969
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,556 in stock
#C144969
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.48 | ₹85.48 |
| 10+ | ₹68.13 | ₹681.30 |
| 30+ | ₹59.46 | ₹1,783.80 |
| 100+ | ₹50.78 | ₹5,078.00 |
| 500+ | ₹45.56 | ₹22,780.00 |
| 1,000+ | ₹42.96 | ₹42,960.00 |
1 × ₹85.48
₹85.48
excl. GST
₹100.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFR310TRPBF
₹85.48 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 34pF
- Ciss-Input Capacitance
- 170pF
- Pd - Power Dissipation
- 25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 1.7A
- Reverse Transfer Capacitance (Crss)
- 6.3pF
- RDS(on)
- 3.6Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.528 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- RoHS COMPLIANT HALOGEN FREE Available
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Surface Mount (IRFR310, SiHFR310)
- Straight Lead (IRFU310, SiHFU310)
- Available in Tape and Reel
- Fast Switching
- Fully Avalanche Rated
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| JSM2N60D#C917172JSMSEMI · TO-252 | JSMSEMI | TO-252 | 2,345 | ₹14.96 · 2,345 in stock | View | |
 | XCH2N65M#C7435477XCH · TO-252 | XCH | TO-252 | 2,295 | ₹22.20 · 2,295 in stock | View |
 | DO05NG-C#C41367284DOINGTER · TO-252 | DOINGTER | TO-252 | 2,325 | ₹18.97 · 2,325 in stock | View |
 | MPD05N50D#C55454138MIRACLE POWER · TO-252 | MIRACLE POWER | TO-252 | 2,500 | ₹11.35 · 2,500 in stock | View |
 | RS2N65D#C51904726REASUNOS · TO-252 | REASUNOS | TO-252 | 1,375 | ₹14.33 · 1,375 in stock | View |
