VISHAYDatasheet (PDF)

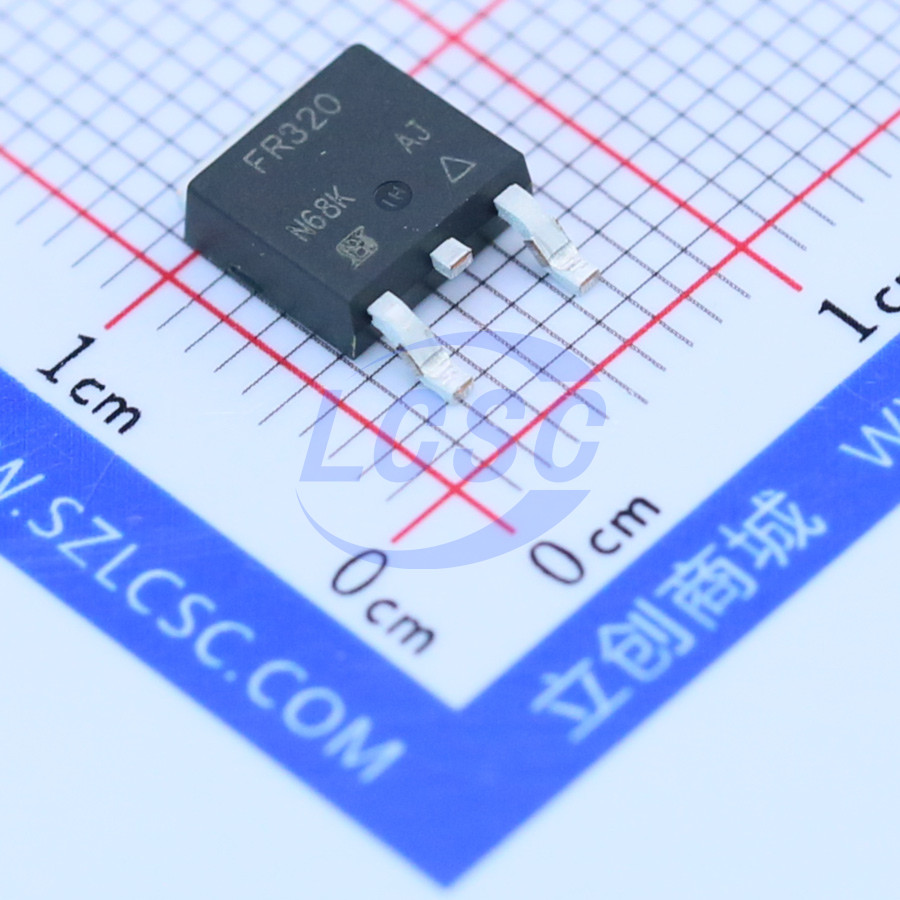

IRFR320TRPbF
N-Channel 400V 3.1A 42W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET N-CH 400V 3.1A DPAK(TO-252)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFR320TRPbF
- Store part #
- C3009
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,177 in stock
#C3009
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.20 | ₹88.20 |
| 10+ | ₹70.34 | ₹703.40 |
| 30+ | ₹61.20 | ₹1,836.00 |
| 100+ | ₹52.27 | ₹5,227.00 |
| 500+ | ₹47.05 | ₹23,525.00 |
| 1,000+ | ₹44.21 | ₹44,210.00 |
1 × ₹88.20
₹88.20
excl. GST
₹104.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFR320TRPbF
₹88.20 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 350pF
- Pd - Power Dissipation
- 42W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 3.1A
- Reverse Transfer Capacitance (Crss)
- 47pF
- RDS(on)
- 1.8Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.528 g
Overview
Third generation Power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Surface Mount (IRFR320,SiHFR320) RoHS
- Straight Lead (IRFU320,SiHFU320) COMPLIAN
- Available in Tape and Reel HALOEE
- Fast Switching Available
- Ease of Paralleling
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MS7N80HGD0#C55042315MASPOWER · TO-252 | MASPOWER | TO-252 | 40 | ₹67.71 · 40 in stock | View |
 | XM4N65D#C55062362XUMAO · TO-252 | XUMAO | TO-252 | 2,500 | ₹25.02 · 2,500 in stock | View |
 | NCE65T1K2K#C181924NCE · TO-252 | NCE | TO-252 | 5,177 | ₹76.31 · 5,177 in stock | View |
 | NCE70T1K2K#C502922NCE · TO-252 | NCE | TO-252 | 1,554 | ₹80.82 · 1,554 in stock | View |
 | STD7ANM60N#C672209ST · DPAK | ST | DPAK | 25 | ₹447.50 · 25 in stock | View |
