JSMSEMIDatasheet (PDF)

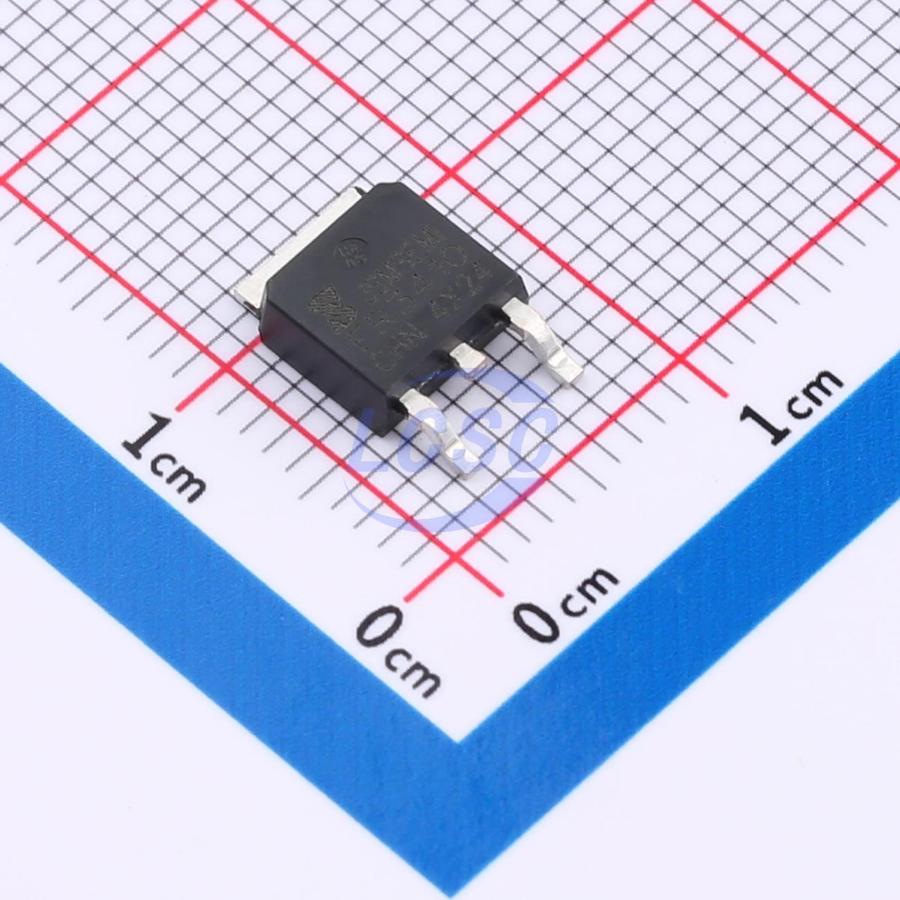

IRFR3410TR-JSM
N-Channel 100V 36A 71W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 100V 36A TO-252
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IRFR3410TR-JSM
- Store part #
- C18190931
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,336 in stock
#C18190931
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.62 | ₹53.62 |
| 10+ | ₹47.97 | ₹479.70 |
| 30+ | ₹45.03 | ₹1,350.90 |
| 100+ | ₹42.11 | ₹4,211.00 |
| 500+ | ₹40.43 | ₹20,215.00 |
| 1,000+ | ₹39.60 | ₹39,600.00 |
1 × ₹53.62
₹53.62
excl. GST
₹63.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR3410TR-JSM
₹53.62 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 36A
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 71W
- Reverse Transfer Capacitance (Crss)
- 9.5pF
- RDS(on)
- 20mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.458 g
Overview
This N-Channel MOSFET uses advanced SGT technology and design to provide excellent Rds(on) with low gate charge. It can be used in a wide variety of applications.
Applications
- Power Management
- Portable Devices
- DC/DC Converters
- Load Switches
- Digital Cameras
- LCD Monitor Inverters
Key features
- Vds = 100V, ID = 36A, RDs(on) < 20mΩ @Vgs = 10V
- Low gate charge.
- Green device available.
- Advanced high cell density trench technology for ultra low Rds(on).
- Excellent package for good heat dissipation.
