HXY MOSFETDatasheet (PDF)

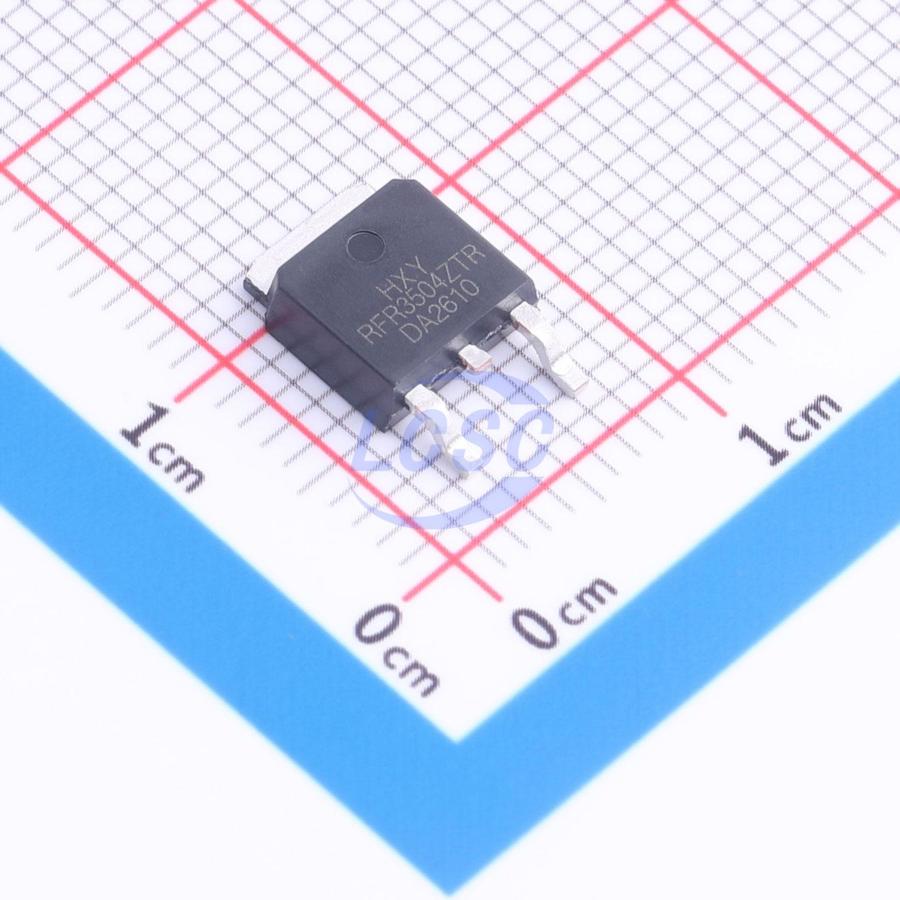

IRFR3504ZTRPBF-HXY
40V 60A 34.6W 7.7mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRFR3504ZTRPBF-HXY
- Store part #
- C54582544
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C54582544
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.52 | ₹61.52 |
| 10+ | ₹48.66 | ₹486.60 |
| 30+ | ₹43.30 | ₹1,299.00 |
| 100+ | ₹36.45 | ₹3,645.00 |
| 500+ | ₹33.45 | ₹16,725.00 |
| 1,000+ | ₹31.51 | ₹31,510.00 |
1 × ₹61.52
₹61.52
excl. GST
₹72.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR3504ZTRPBF-HXY
₹61.52 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 148pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 1.639nF
- Pd - Power Dissipation
- 34.6W
- Reverse Transfer Capacitance (Crss)
- 112pF
- RDS(on)
- 7.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
The IRFR3504ZTRPBF utilizes advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = 40V, ID = 60A
- RDS(ON) < 10mΩ @ VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD8647L-HXY#C22366947HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 24 | ₹62.67 · 24 in stock | View |
 | FDD6635-HXY#C22366948HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 2 | ₹79.75 · 2 in stock | View |
 | FDD8445-HXY#C22367192HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹54.56 · 10 in stock | View |
 | FDD8447L-HXY#C22367193HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 1,915 | ₹32.77 · 1,915 in stock | View |
 | AOD4184A-HXY#C22367195HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 8,750 | ₹27.65 · 8,750 in stock | View |
