VBsemi ElecDatasheet (PDF)

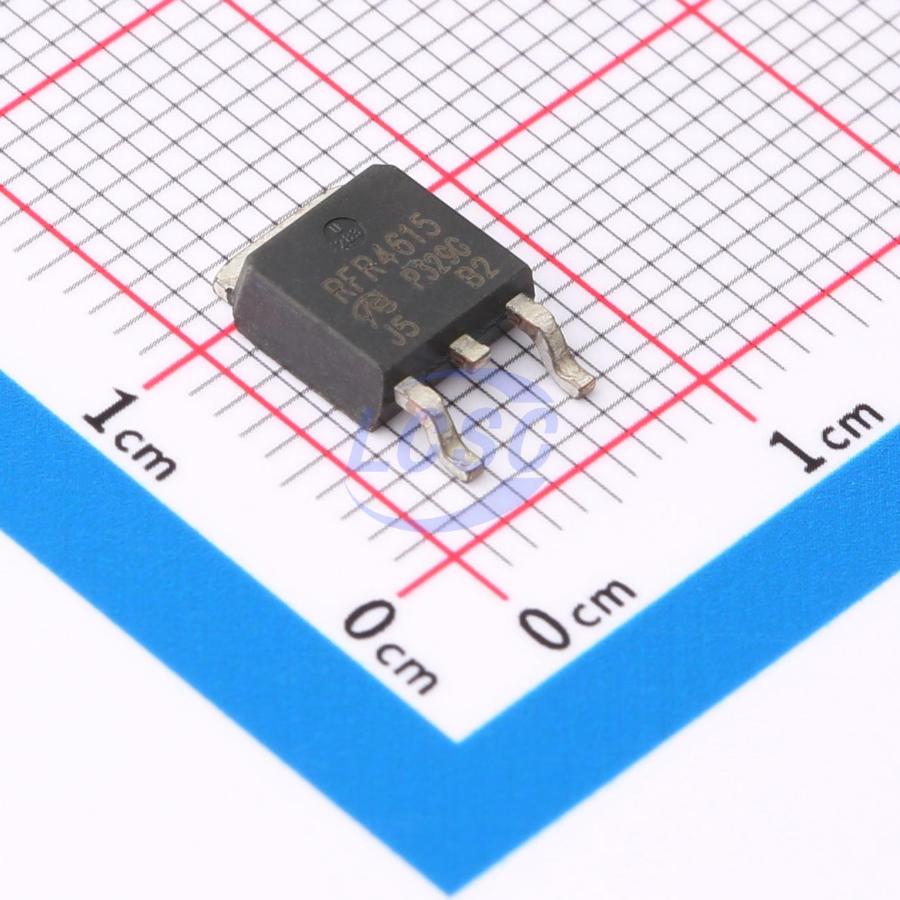

IRFR4615TRLPBF-VB
N-Channel 150V 35.5A 3.1W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 150V 35.5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFR4615TRLPBF-VB
- Store part #
- C7568889
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C7568889
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.24 | ₹133.24 |
| 10+ | ₹111.03 | ₹1,110.30 |
| 30+ | ₹99.93 | ₹2,997.90 |
| 100+ | ₹88.83 | ₹8,883.00 |
| 500+ | ₹67.71 | ₹33,855.00 |
| 1,000+ | ₹64.23 | ₹64,230.00 |
1 × ₹133.24
₹133.24
excl. GST
₹157.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR4615TRLPBF-VB
₹133.24 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 160pF
- Current - Continuous Drain(Id)
- 35.5A
- Ciss-Input Capacitance
- 1.735nF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 32mΩ@10V;45mΩ@8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28.5nC@10V;23nC@8V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.505 g
Overview
Applications
- Primary-side switch
Key features
- Meets halogen-free requirements as defined by IEC 61249-2-21
- Ultra-low Qgd for reduced switching losses
- 100% Rg tested
- 100% avalanche tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBE1154N#C7429147VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹115.58 · 15 in stock | View |
 | AUIRFR4615TR-VB#C7494544VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹139.11 · 30 in stock | View |
 | IRFR4615TRPBF-VB#C7494588VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 23 | ₹115.83 · 23 in stock | View |
 | AOD254-VB#C18212601VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹136.90 · 20 in stock | View |
 | SUD80460E-GE3-VB#C22395905VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹110.07 · 5 in stock | View |
