VISHAYDatasheet (PDF)

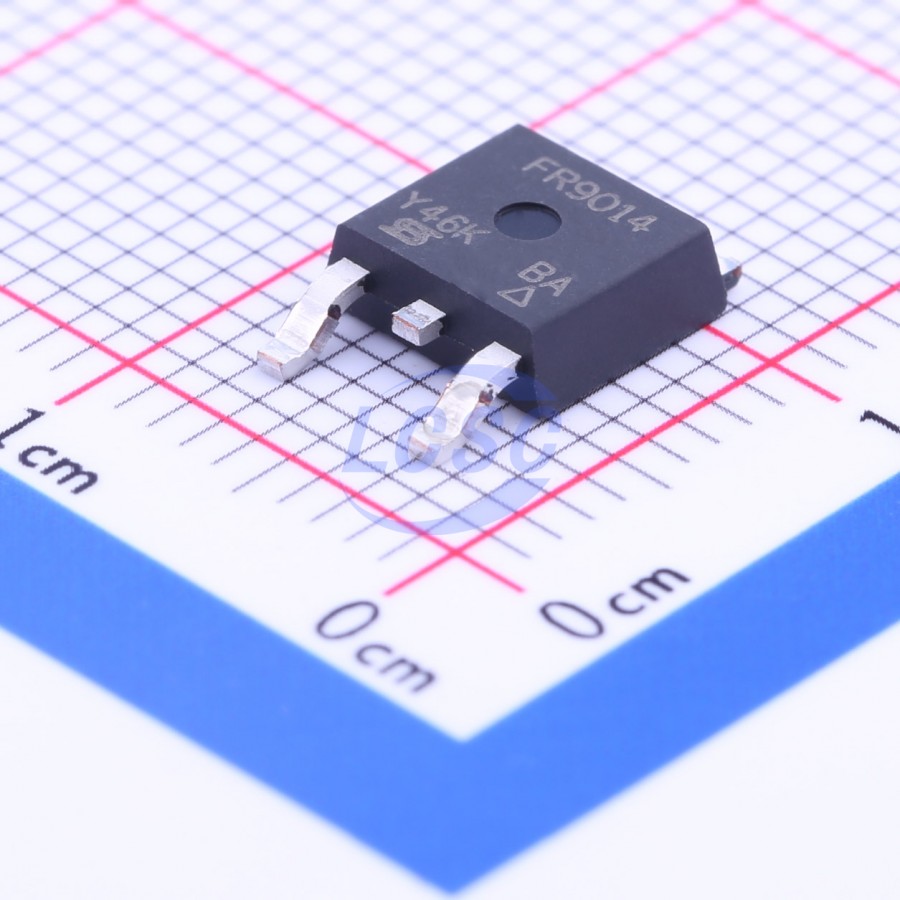

IRFR9014TRPBF
P-Channel 60V 5.1A 2.5W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET P-CH 60V 5.1A DPAK(TO-252)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFR9014TRPBF
- Store part #
- C143746
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,191 in stock
#C143746
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.32 | ₹63.32 |
| 10+ | ₹49.88 | ₹498.80 |
| 30+ | ₹44.02 | ₹1,320.60 |
| 100+ | ₹36.86 | ₹3,686.00 |
| 500+ | ₹32.96 | ₹16,480.00 |
| 1,000+ | ₹31.01 | ₹31,010.00 |
1 × ₹63.32
₹63.32
excl. GST
₹74.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFR9014TRPBF
₹63.32 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 170pF
- Ciss-Input Capacitance
- 270pF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 5.1A
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 500mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.528 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- Dynamic dV/dt rating
- Repetitive avalanche rated
- Surface mount (IRFR9014, SiHFR9014)
- Straight lead (IRFU9014, SiHFU9014)
- Available in tape and reel
- P-channel
- Fast switching
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM6013PHK3-1#C5246428TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 300 | ₹31.51 · 300 in stock | View |
 | FQD8P10TM#C241842onsemi · DPAK | onsemi | DPAK | 2,835 | ₹93.23 · 2,835 in stock | View |
 | WSF15P10#C148442Winsok Semicon · TO-252 | Winsok Semicon | TO-252 | 2,859 | ₹58.53 · 2,859 in stock | View |
 | IRFR9120NTRPBF#C3019Infineon · DPAK(TO-252AA) | Infineon | DPAK(TO-252AA) | 31,490 | ₹38.67 · 31,490 in stock | View |
 | FQD4P25TM_WS-VB#C22389188VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹103.66 · 1 in stock | View |
